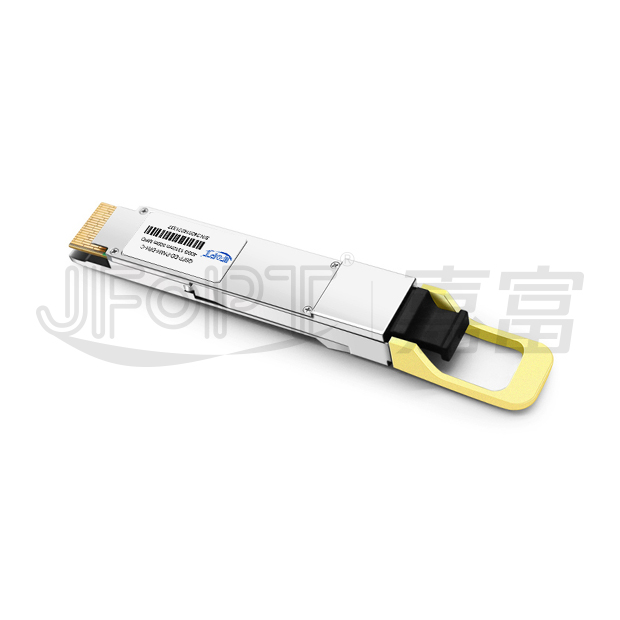

产品型号
|
JFTSM-QSFPDD-400(4x100)-13-05(DR4)-MPO8/12
|
工厂品牌
|
JFOPT嘉富
|
封装形式
|
QSFPDD
|
光口类型
|
MPO 8C/12C
|
最高总速率
|
400Gbps
|
每通道速率
|
53.125Gbps
|
最大传输距离
|
500m
|
||
工作波长
|
1310nm
|
工作电压
|
3.3V
|
光纤型号
|
SMF
|
纤芯尺寸
|
9/125
|
发射器类型
|
VCSEL
|
接收器类型
|
PIN
|
发射功率
|
-2.9~4.0dBm
|
接收灵敏度
|
-4.4dBm
|
数字诊断(DDM)
|
YES
|
接收过载
|
4dBm
|
功耗
|
<10W
|
支持协议
|
IEEE 802.3bs 400GBASE-DR4
400G ethernet Infiniband interconnect Data center Enterprise networking |
工作温度(商业级)
|
0℃~+70℃
|
储存温度(商业级)
|
-40℃~+85℃
|
JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

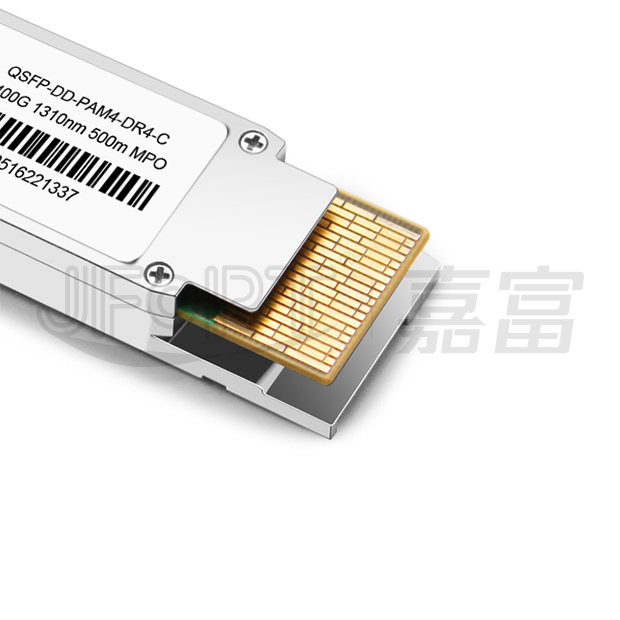

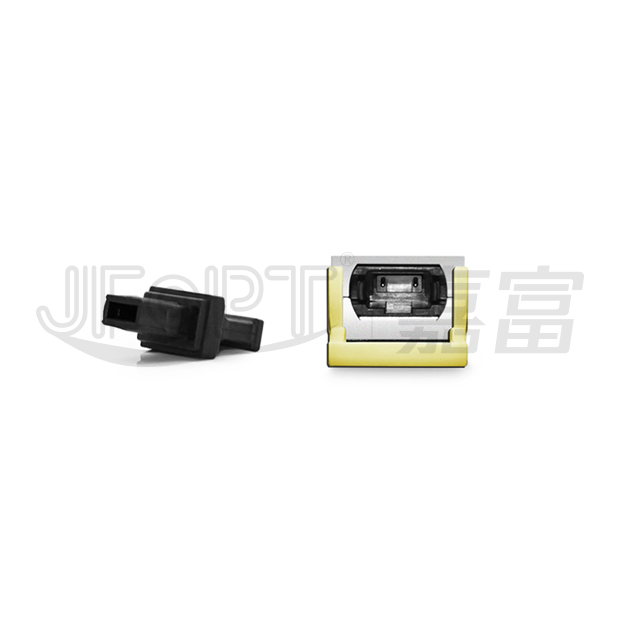

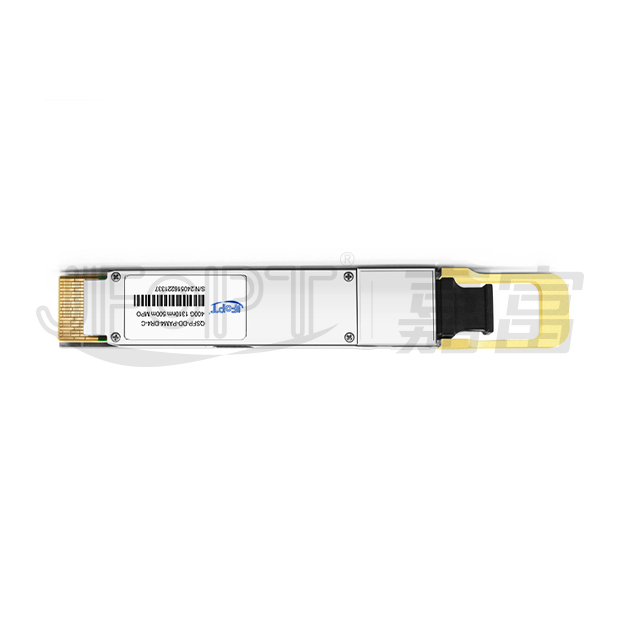

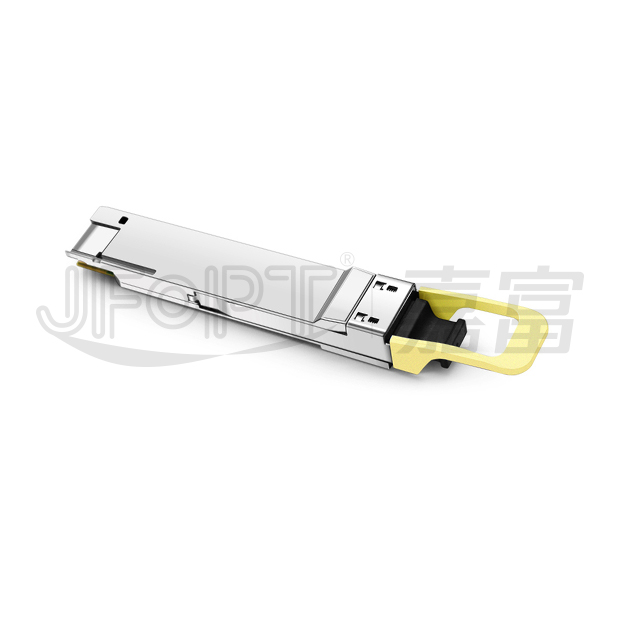

JFOPT QSFP-DD 400G (4x100G) 1310nm 500米 DR4 MPO8/12 光模块是一款高性能400Gb/s四通道小型可插拔双密度(QSFP-DD)光模块,专为500米中短距光通信应用优化设计。该模块将8通道50Gb/s(PAM4调制)电输入信号转换为4路并行光信号(每路100Gb/s),实现400Gb/s总速率传输;接收端则执行逆向处理,将4路100Gb/s光信号还原为8通道50Gb/s(PAM4调制)电输出。模块兼容MTP/MPO-12连接器光纤跳线,通过插座内置导向针确保精准对准,安装时严禁扭转跳线以免破坏通道对准。电气接口采用符合QSFP-DD MSA标准的边缘式连接器。紧凑型设计结合坚固的光电连接结构与数字诊断接口,使其成为高速短距数据通信应用的可靠解决方案。
Hot-pluggable QSFP-DD form factor | Parallel 4 optical lanes | ||||||||
MPO-12 connector | Data rate 106.25Gbps PAM4 per lane | ||||||||
8x53.125Gb/s electrical interface(400GAUI-8) | Up to 500m transmission on single mode fiber(SMF) with FEC | ||||||||
Digital diagnostics functions are available via the I2C interface | Single 3.3V power supply and power dissipation<10W | ||||||||
Operating case temperature:0℃~+70℃ |
400G ethernet | Infiniband interconnect | |||||||
Data center | Enterprise networking |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rate per lane | DR | - | 53.125 | - | Gbps | - | |||
Transmitter |
|||||||||
Input differential impedance | Rin | 90 | 100 | 110 | Ω | - | |||
Differential input voltage swing | Vin | 900 | - | 1100 | mVp-p | - | |||
Receiver |
|||||||||
Differential output swing | Vout | - | - | 900 | mVp-p | - | |||
Output differential impedance | Rout | 90 | 100 | 110 | Ω | - |
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center Wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
Data rate,each lane | - | 53.125±100ppm | GBd | - | |||||
Side-mode suppression ratio | SMSR | 30 | - | - | dB | - | |||
Average optical power,per lane | Po | -2.9 | - | 4 | dBm | 1 | |||
Extinction ratio | ER | 3.5 | - | - | dBm | - | |||
Optical modulation amplitude | OMA | -4.5 | - | 3 | dB | - | |||
Transmitter and dispersion eye closure |
TDECQ | - | - | 3.4 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 21.4 | dB | - | |||
Receiver |
|||||||||
CenterWavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
Data rate,each lane | - | 53.125±100ppm | GBd | - | |||||
Average receive power,each lane | - | -5.9 | - | 4.0 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 4.2 | ![]() |
- | |||
Receiver sensitivity(OMAouter),each lane | - | - | - | -4.4 | dBm | - | |||
LOS asserted | Lsa | -15 | - | - | dBm | ![]() |
|||
LOS de-asserted | Lda | - | - | -8.9 | dBm | - | |||
LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Average launch power,each lane(min)is informative and not the principal indicator of signal strength. [2]Atransmitter with launch power below this value cannot be compliant;however,avalue above this does not ensure compliance. |
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

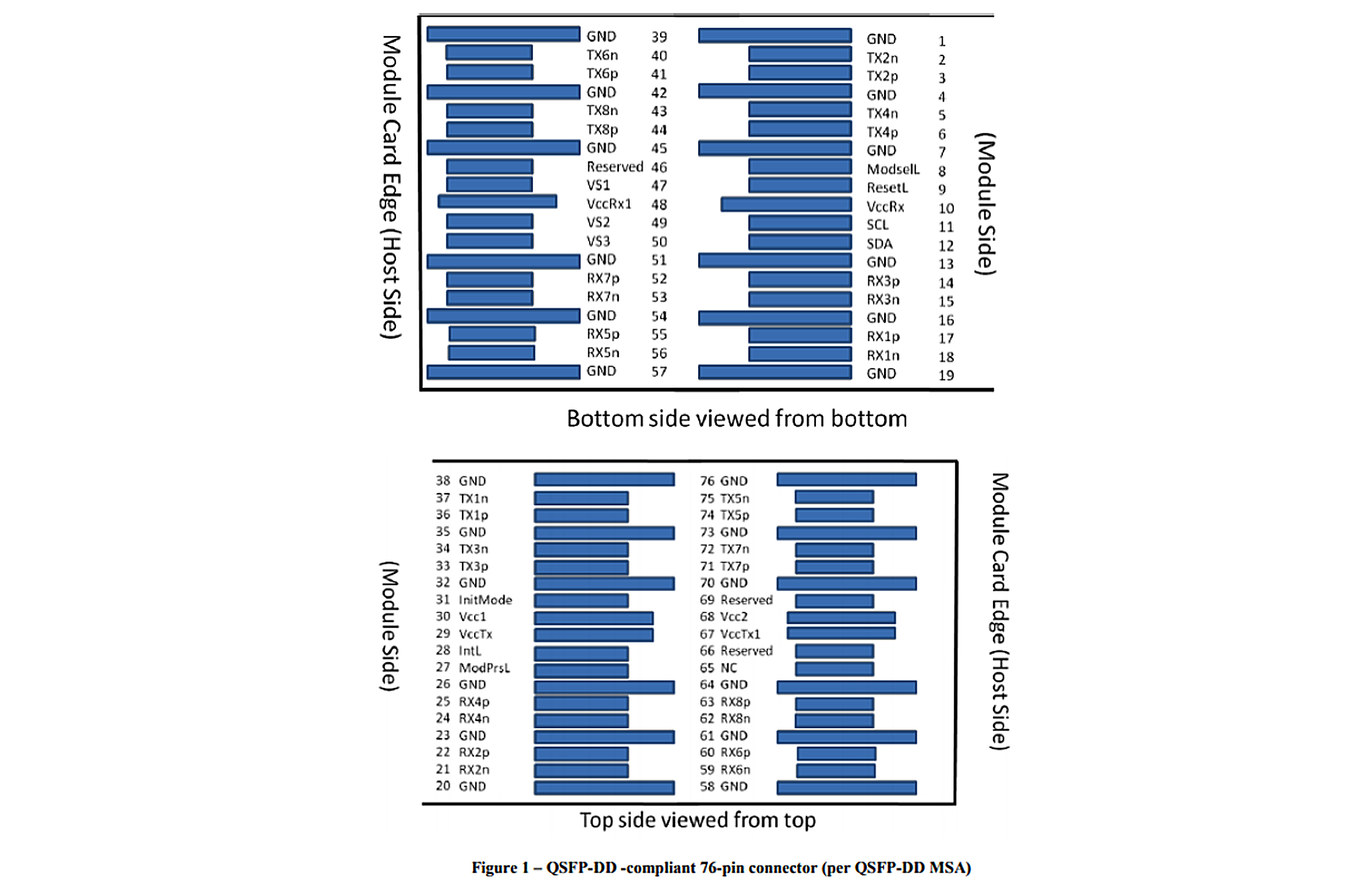

Pad | Logic | Symbol | Name/Description | ||||||
1 | - | GND | Ground | ||||||
2 | CML-I | Tx2n | Transmitter inverted data input | ||||||
3 | CML-I | Tx2p | Transmitter non-inverted data input | ||||||
4 | - | GND | Ground | ||||||
5 | CML-I | Tx4n | Transmitter inverted data input | ||||||
6 | CML-I | Tx4p | Transmitter non-inverted data input | ||||||
7 | - | GND | Ground | ||||||
8 | LVTTL-I | ModSelL | Module select | ||||||
9 | LVTTL-I | ResetL | Module reset | ||||||
10 | - | Vcc Rx | +3.3V Power supply receiver | ||||||
11 | LVCMOS- I/O | SCL | 2-wire serial interface clock | ||||||
12 | LVCMOS- I/O | SDA | 2-wireserial interface data | ||||||
13 | - | GND | Ground | ||||||
14 | CML-O | Rx3p | Receiver non-inverted data output | ||||||
15 | CML-O | Rx3n | Receiver inverted data output | ||||||
16 | - | GND | Ground | ||||||
17 | CML-O | Rx1p | Receiver non-inverted data output | ||||||
18 | CML-O | Rx1n | Receiver inverted data output | ||||||
19 | - | GND | Ground | ||||||
20 | - | GND | Ground | ||||||
21 | CML-O | Rx2n | Receiver onverted data output | ||||||
22 | CML-O | Rx2p | Receiver non-inverted data output | ||||||
23 | - | GND | Ground | ||||||
24 | CML-O | Rx4n | Receiver inverted data output | ||||||
25 | CML-O | Rx4p | Receiver non-onverted data output | ||||||
26 | - | GND | Ground | ||||||
27 | LVTTL-O | ModPrsL | Module present | ||||||
28 | LVTTL-O | IntL | Interrupt | ||||||
29 | - | VCC Tx | +3.3V power supply transmitter | ||||||
30 | - | VCC1 | +3.3V power supply | ||||||
31 | LVTTL-I | InitMode | Initialization mode;in legacy QSFP applications,the initMode pad is called LPMODE | ||||||
32 | - | GND | Ground | ||||||
33 | CML-I | Tx3p | Transmitter non-inverted data input | ||||||
34 | CML-I | Tx3n | Transmitter inverted data input | ||||||
35 | - | GND | Ground | ||||||
36 | CML-I | Tx1p | Transmitter non-Inverted data input | ||||||
37 | CML-I | Tx1n | Transmitter inverted data input | ||||||
38 | - | GND | Ground | ||||||
39 | - | GND | Ground | ||||||
40 | CML-I | Tx6n | Transmitter inverted data input | ||||||
41 | CML-I | Tx6p | Transmitter non-inverted data input | ||||||
42 | - | GND | Ground | ||||||
43 | CML-I | Tx8n | Transmitter inverted data input | ||||||
44 | CML-I | Tx8p | Transmitter non-inverted data input | ||||||
45 | - | GND | Ground | ||||||
46 | - | Reserved | For future use | ||||||
47 | - | VS1 | Module vender specific1 | ||||||
48 | - | Vcc Rx1 | 3.3V power supply receiver | ||||||
49 | - | VS2 | Module vender specific2 | ||||||
50 | - | VS3 | Module vender specific3 | ||||||
51 | - | GND | Ground | ||||||
52 | CML-O | Rx7p | Receiver non-inverted data output | ||||||
53 | CML-O | Rx7n | Receiver inverted data output | ||||||
54 | - | GND | Ground | ||||||
55 | CML-O | Rx5p | Receiver non-inverted data output | ||||||
56 | CML-O | Rx5n | Receiver inverted data output | ||||||
57 | - | GND | Ground | ||||||
58 | - | GND | Ground | ||||||
59 | CML-O | Rx6n | Receiver inverted data output | ||||||
60 | CML-O | Rx6p | ReceiverNon-inverted data output | ||||||
61 | - | GND | Ground | ||||||
62 | CML-O | Rx8n | Receiver inverted data output | ||||||
63 | CML-O | Rx8p | Receiver non-inverted data output | ||||||
64 | - | GND | Ground | ||||||
65 | - | NC | No connect | ||||||
66 | - | Reserved | For futureuse | ||||||
67 | - | VCC Tx1 | 3.3V power supply transmitter | ||||||
68 | - | VCC2 | 3.3V power supply | ||||||
69 | - | Reserved | For future use | ||||||
70 | - | GND | Ground | ||||||
71 | CML-I | Tx7p | Transmitter non-inverted data input | ||||||
72 | CML-I | Tx7n | Transmitter inverted data input | ||||||
73 | - | GND | Ground | ||||||
74 | CML-I | Tx5p | Transmitter non-inverted data input | ||||||
75 | CML-I | Tx5n | Transmitter inverted data input | ||||||
76 | - | GND | Ground |
