产品型号 | JFTSM-OSFP-400(4x100)-85-005(SR4)-MPO8/12 | 工厂品牌 | JFOPT嘉富 |
封装形式 | OSFP | 光口类型 | MPO 8C/12C |
最高总速率 | 400Gbps | 每通道速率 | 106.25Gbps |
OM3最大传输距离 | 30m | OM4最大传输距离 | 50m |
工作波长 | 850nm | 工作电压 | 3.3V |
光纤型号 | MMF | 纤芯尺寸 | 50/125 |
发射器类型 | VCSEL | 接收器类型 | PIN |
发射功率 | -4.6~4.0dBm | 接收灵敏度 | -4.6dBm
-6.4+TECQ dBm
|
数字诊断(DOM) | YES | 接收过载 | 4dBm |
功耗 | <9W | 支持协议 | 400G BASE-SR4 ethernet |
工作温度(商业级) | 0℃~+70℃ | 储存温度(商业级) | -40℃~+85℃ |
JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

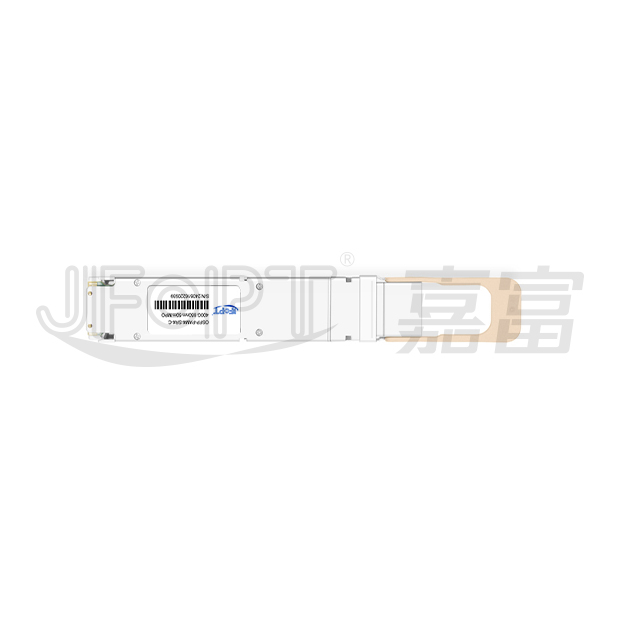

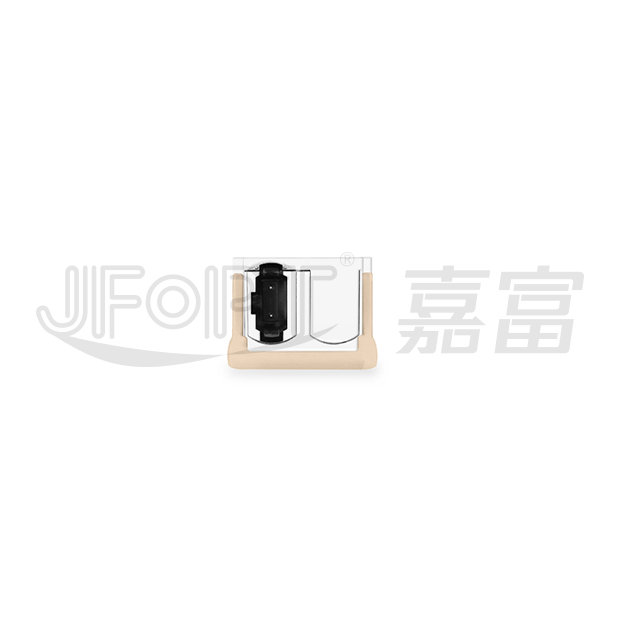

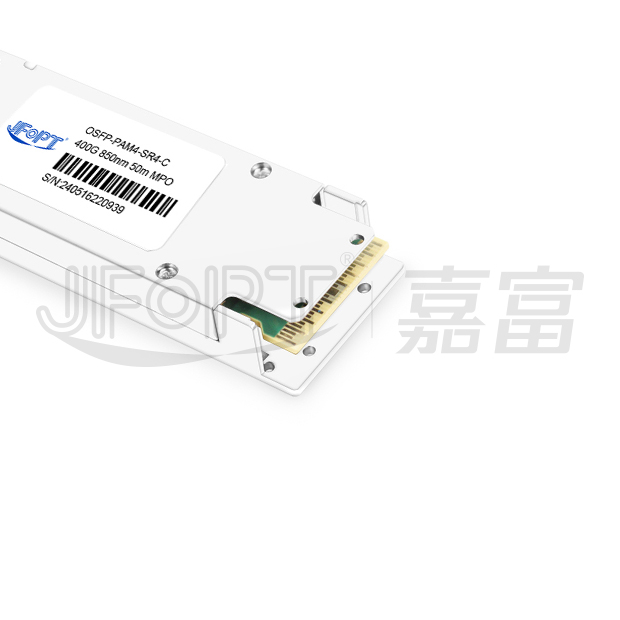

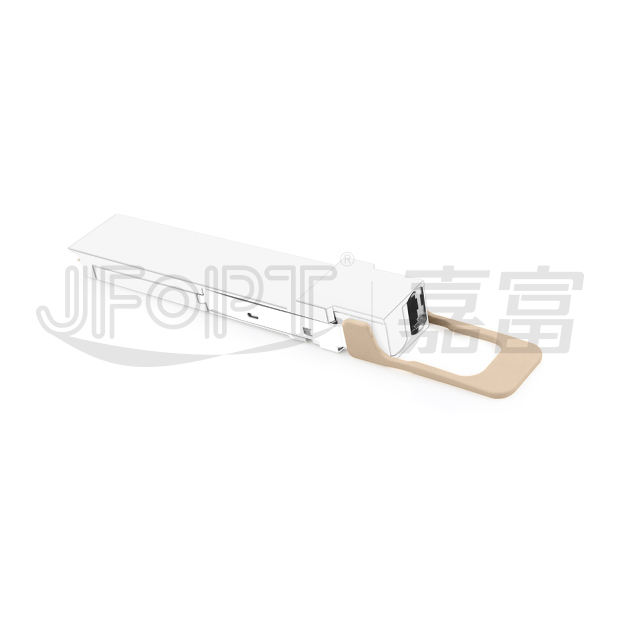

JFOPT OSFP 400G (4x100G) 850nm 50m SR4 MPO 8/12光模块是一款专为400Gbps SR4应用设计的高性能可插拔光纤模块,通过OM3光纤支持最远30米、OM4光纤支持最远50米的短距离数据通信与互连,每通道传输速率达106.25Gbps。该模块配置MPO光学接口,在850nm标称波长下工作于多模光纤系统,其电气接口采用60针金手指连接器,确保在高速网络环境中实现高效集成。
Hot-pluggable OSFP form factor | Data rate 53.125 Gb/s PAM4 per lane | ||||||||
8x53Gbps PAM4 transmitter and PAM4 receiver | 8 channels 850nm VCSEL laser array and 8 channels PIN photo-detector array | ||||||||
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF | Digital diagnostics functions are available via the I2C interface | ||||||||
Single 3.3V power supply and power dissipation<12W | MPO-16APC or 2xMTP-12 APC connector | ||||||||
Operating case temperature:0℃~+70℃ |
400G BASE-SR4 ethernet |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rate per lane | DR | - | 106.25 | - | Gbps | - | |||
Transmitter |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
Input differential impedance | Rin | - | 100 | - | Ω | - | |||
Differential input voltage swing | Vin | 300 | - | 1100 | mV | - | |||
Tx fault | VoL | -0.3 | - | 0.4 | V | At 0.7mA | |||
Receiver |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
Differential output swing | Vout | 300 | - | 900 | mV | - | |||
Output differential impedance | Rout | - | 100 | - | Ω | - |
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center wavelength | λ | 844 | 850 | 863 | nm | - | |||
RMS spectral width | Pm | - | - | 0.6 | nm | 1 | |||
Average optical power | Po | -4.6 | - | 4 | dBm | 2 | |||
Extinction ratio | ER | 2.5 | - | - | dBm | - | |||
Optical modulation amplitude(OMAouter)(max) | OMA | 3.5 | dBm | - | |||||
Optical modulation amplitude (OMAouter)(min)
Max(TECQ,TDECQ)≤1.8dB
1.8
|
-2.6 -4.4+max(TECQ,TDECQ) |
- | |||||||
Transmitter and dispersion eye closure | TDECQ | - | - | 4.4 | dB | - | |||
Transmitter eye closure | TECQ | - | - | 4.4 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 14 | dB | - | |||
Receiver |
|||||||||
Center wavelength | λ | 842 | 850 | 948 | nm | - | |||
Average receive power,each lane | - | -6.4 | - | 4 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 3.5 | dBm | - | |||
Receiver sensitivity (OMAouter) Max(TECQ,TDECQ)≤1.8dB
1.8
|
Psens | -4.6 -6.4+TECQ |
![]() |
3 | |||||
LOS asserted | Lsa | -15 | - | - | dBm | - | |||
LOS de-asserted | Lda | - | - | -7.5 | dBm | ![]() |
|||
LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Trade-offs are available between spectral width,centerwavelength and minimum OMA. [2]Theoptical power is launched into MMF [3]BER=2.4E-4;PRBS31Q@53.125GBd. |
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

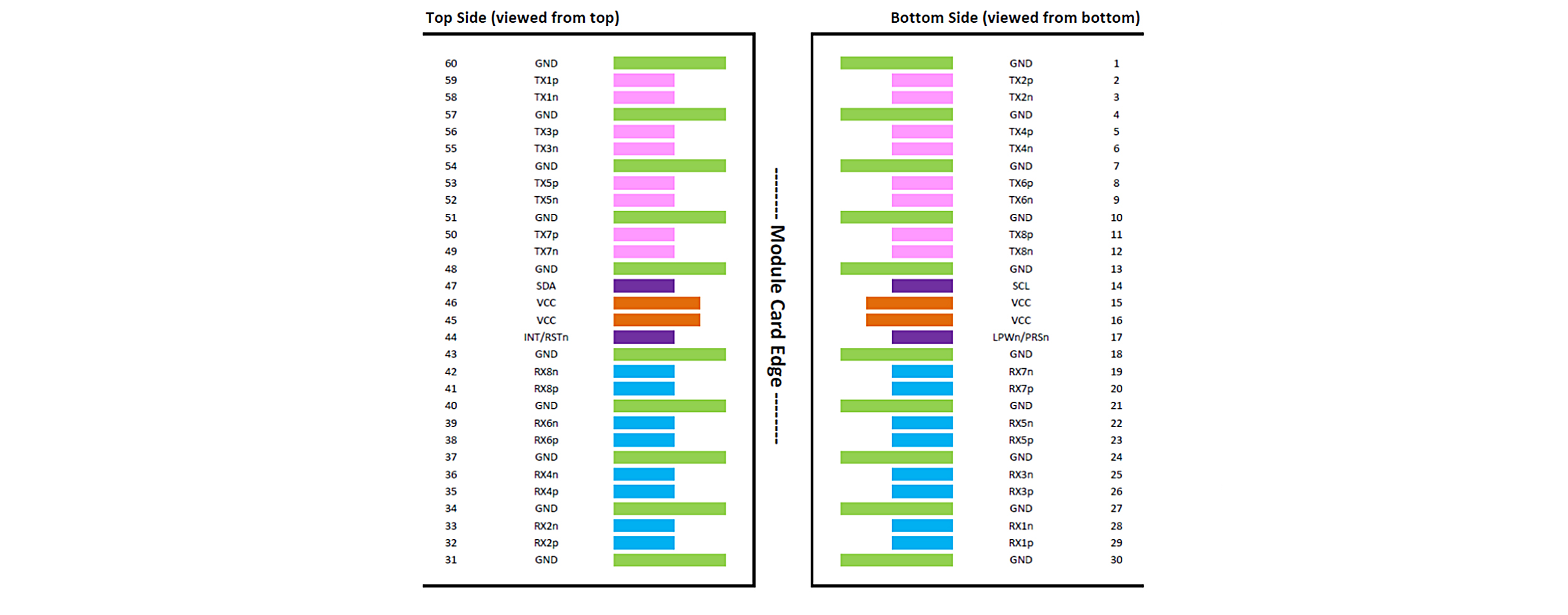

Pin | Symbol | Name/Description | |||||||
1 | GND | Ground | |||||||
2 | TX2p | Transmitter data non-inverted | |||||||
3 | TX2n | Transmitter dataInverted | |||||||
4 | GND | Ground | |||||||
5 | Tx4p | Transmitter data non-inverted | |||||||
6 | TX4n | Transmitter data inverted | |||||||
7 | GND | Ground | |||||||
8 | TX6p | Transmitter data non-inverted | |||||||
9 | TX6n | Transmitter data inverted | |||||||
10 | GND | Ground | |||||||
11 | TX8p | Transmitter data non-inverted | |||||||
12 | TX8n | Transmitter data inverted | |||||||
13 | GND | Ground | |||||||
14 | SCL | 2-wire serial interface clock | |||||||
15 | VCC | +3.3V power | |||||||
16 | VCC | +3.3V power | |||||||
17 | LPWn/PRSn | Low-power mode/module present | |||||||
18 | GND | Ground | |||||||
19 | RX7n | Receiver data inverted | |||||||
20 | RX7p | Receiver data non-inverted | |||||||
21 | GND | Ground | |||||||
22 | RX5n | Receiver Data Inverted | |||||||
23 | RX5p | Receiver data non-inverted | |||||||
24 | GND | Ground | |||||||
25 | RX3n | Receiver data inverted | |||||||
26 | RX3p | Receiver data non-inverted | |||||||
27 | GND | Ground | |||||||
28 | RX1n | Receiver data inverted | |||||||
29 | RX1p | Receiver data non-inverted | |||||||
30 | GND | Ground | |||||||
31 | GND | Ground | |||||||
32 | RX2p | Receiver data non-inverted | |||||||
33 | RX2n | Receiver data inverted | |||||||
34 | GND | Ground | |||||||
35 | RX4p | Receiver data non-inverted | |||||||
36 | RX4n | Receiver data inverted | |||||||
37 | GND | Ground | |||||||
38 | RX6p | Receiver data non-inverted | |||||||
39 | RX6n | Receiver data inverted | |||||||
40 | GND | Ground | |||||||
41 | RX8p | Receiver data non-inverted | |||||||
42 | RX8n | Receiver data inverted | |||||||
43 | GND | Ground | |||||||
44 | INT/RSTn | Module interrupt/module reset | |||||||
45 | VCC | +3.3V power | |||||||
46 | VCC | +3.3V power | |||||||
47 | SDA | 2-wire serial interface data | |||||||
48 | GND | Ground | |||||||
49 | TX7n | Transmitter data inverted | |||||||
50 | TX7p | Transmitter data non-inverted | |||||||
51 | GND | Ground | |||||||
52 | TX5n | Transmitter data inverted | |||||||
53 | TX5p | Transmitter data non-inverted | |||||||
54 | GND | Ground | |||||||
55 | TX3n | Transmitter data inverted | |||||||
56 | TX3p | Transmitter data non-inverted | |||||||
57 | GND | Ground | |||||||
58 | TX1n | Transmitter data inverted | |||||||
59 | TX1p | Transmitter data non-inverted | |||||||
60 | GND | Ground |
