JFOPT QSFP28 100G LAN-WDM 40公里光模块 | 100GBASE-ER4 双工LC收发器

产品型号	JFTSM-QSFP28-100-LW-40(ER4)-LCD	工厂品牌	JFOPT嘉富
封装形式	QSFP28	光口类型	LC DX
最高总速率	103.1Gbps	每通道速率	25.78125Gbps
最大传输距离	40km
工作波长	1310nm	工作电压	3.3V
光纤型号	SMF	纤芯尺寸	9/125
发射器类型	DFB	接收器类型	PIN
发射功率	-2.9~4.5dBm	接收灵敏度	-18.6Bm
数字诊断(DDM)	YES	接收过载	-4.9dBm
功耗	<4.5W	支持协议	100GBASE-ER4 Ethernet Links Infiniband QDR and DDR interconnects
工作温度(商业级)	0℃~+70℃	储存温度（商业级）	-40℃~+85℃

生产线介绍

PRODUCTION LINE INTRODUCTION

JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

产品介绍

PRODUCT PRESENTATION

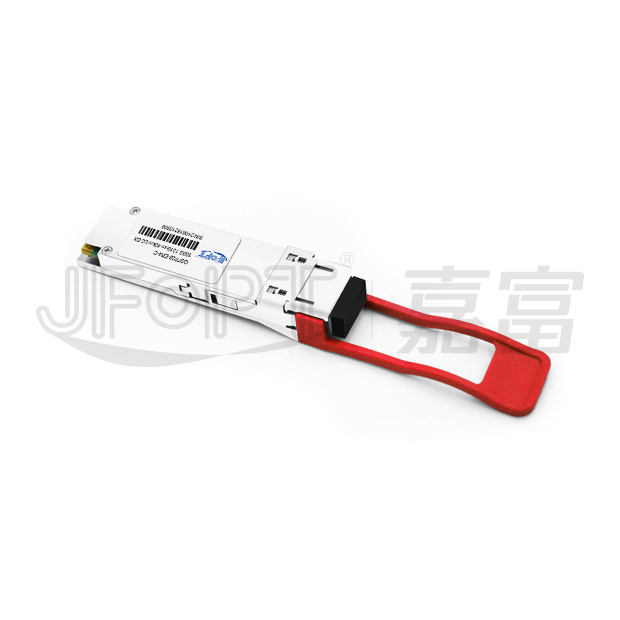

JFOPT QSFP28 100G LAN-WDM 40km ZR4双工LC光模块是一款符合以太网100GBASE-ER4标准的高性能100Gb/s收发器，通过将四路25Gb/s输入电信号转换为局域网波分复用（LAN WDM）光信号并复合成单通道实现100Gb/s光传输，接收端则将100Gb/s光输入解复用为四路LAN WDM光信号并转换为四路输出电信号；其四通道中心波长（1295.56nm/1300.05nm/1304.58nm/1309.14nm）严格遵循IEEE 802.3ba定义的LAN-WDM波长栅格，采用高性能制冷式LAN WDM DFB发射器与高灵敏度APD接收器，确保40公里链路100G以太网应用的卓越性能；依据QSFP+多源协议(MSA)设计，具备紧凑型结构、高可靠性光电接口及数字诊断功能，可耐受高温、高湿及强电磁干扰(EMI)等极端工况，在严苛环境中保障稳定可靠的运行。

光模块系列产品

TRANSCEIVER SERIES PRODUCTS

生产及检测设备

PRODUCTION & TESTING EQUIPMENT

产品特点

FEATURES

Compliant to ethernet 100GBASE-ER4					Supports 103.1Gb/s aggregate bit rate
Transmitter:cooled 4x25Gb/s LAN WDM TOSA(1295.56,1300.05,1304.58,1309.14nm)					Receiver:4x25Gb/sAPD ROSA
Up to 40km reach for G.652 SMF with FEC					Duplex LC optical receptacle
4x25G electrical interface(OIF CEI-28G-VSR)					Maximum power consumption 4.5W
Single+3.3V power supply					Case operating temperature:0~+70℃

应用范围

APPLICATION

100GBASE-ER4 ethernet links

Infiniband QDR and DDR interconnects

符合标准

STANDARD COMPLIANCE

绝对最大额定值

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-20	+85	℃
Relative humidity	RH	5	85	%

These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

推荐的操作环境

RECOMMENDED OPERATING ENVIRONMENT

Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.13	3.3	3.47	V
Operating case temperature	Tca	0	-	70	℃
Data rate per lane	fd	-	25.78125	-	Gb/s
Link distance	D	-	-	40	km

电气特性

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter
Input differential impedance	Rin	90	100	110	Ω	1
Differential input voltage amplitude	Vin	900	-	-	mVp-p	2
Receiver
Output differential impedance	Rout	90	100	110	Ω	1
Differential output voltage amplitude	Vout	-	-	900	mVp-p	3
Notes: [1]AC coupled. [2]Differential input voltage amplitude is measuredbetween TxnP and TxnN. [3]Differentialoutput voltage amplitude is measured between RxnP and RxnN.

发射机规格-光学

TRANSITTER SPECIFICATIONS-OPTICAL

Parameter		Symbol	Min	Typical	Max	Unit
Center wavelength	Ch0	λ0	1294.53	1295.56	1296.59	nm
	Ch1	λ1	1299.02	1300.05	1301.09	nm
	Ch2	λ2	1303.54	1304.58	1305.63	nm
	Ch3	λ3	1308.09	1309.14	1310.09	nm
Bit rate per channel		BR	25.78125±100ppm			Gb/s
Side mode suppression ratio		SMSR	30	-	-	dB
Average launch power,each lane		-	-2.9	-	4.5	dBm
Launch power in OMA minus TDP,each lane		OMA-TDP	-0.65	-	-	dBm
Transmission & dispersion penalty, each lane		TDP	-	-	2.5	dB
Relative intensity noise		RIN	-	-	-130	dB/Hz
Transmitter reflectance		RT	-	-	-12	dB
Extinction ratio		ER	7	-	-	dB
Transmitter eyemask definition{X1,X2,X3,Y1,Y2,Y3}		{0.25,0.4,0.45,0.25,0.28,0.4}
Average launch power of OFF transmitter,each lane		-	-	-	-30	dBm
Optical return loss tolerance		-	-	-	20	dB

接收器规格-光学

RECEIVER SPECIFICATIONS-OPTICAL

Parameter		Symbol	Min.	Typical	Max.	Unit
Center wavelength	Ch0	λ0	1294.53	1295.56	1296.59	nm
	Ch1	λ1	1299.02	1300.05	1301.09	nm
	Ch2	λ2	1303.54	1304.58	1305.63	nm
	Ch3	λ3	1308.09	1309.14	1310.09	nm
Bit rate per channel		BR	25.78125±100ppm			Gb/s
Damage threshold,each lane		-	-	-	-3	dBm
Averagereceive power,each lane		-	-20.9	-	-4.9	dbm
Unstressed sensitivity(OMA) at 5x105 BER		OMA	-	-	-18.6	dBm
LOS assert		LOSA	-30	-	-	dBm
LOS de-assert		LOSD	-	-	-24	dBm

引脚描述

PIN DESCRIPTION

引脚定义

PIN DEFINITIONS

Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCC Tx	+3.3V power supply transmitter
30	VCC1	+3.3V power Supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted dataInput
37	Tx1n	Transmitter inverted data input
38	GND	Ground
