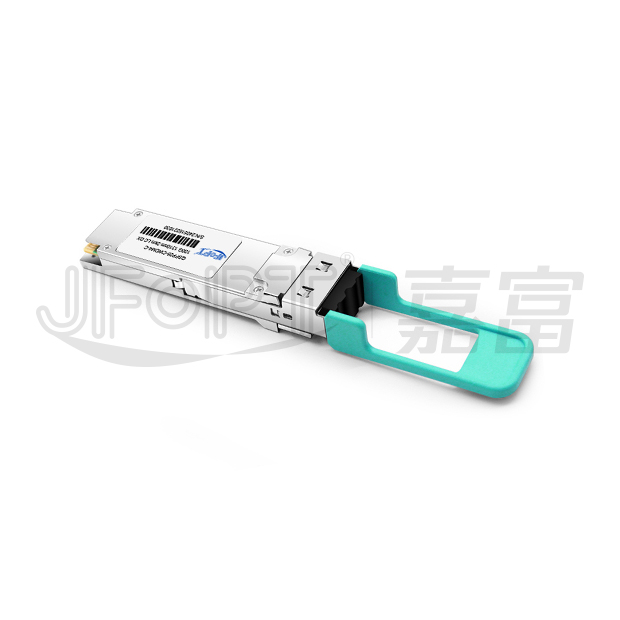

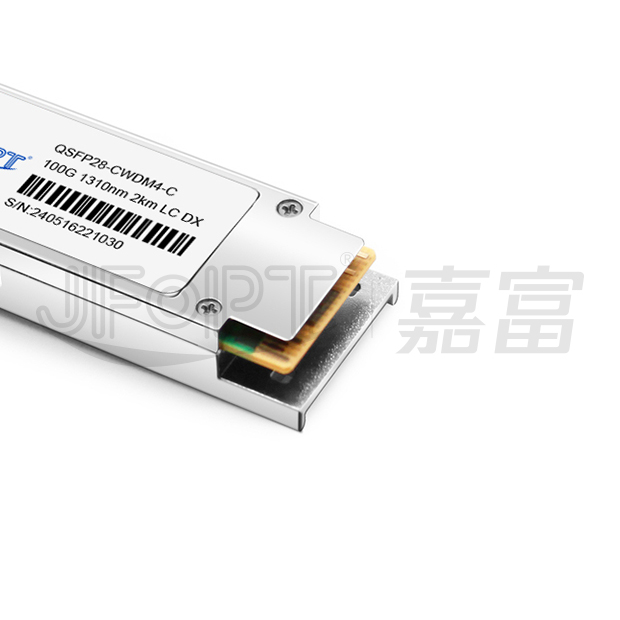

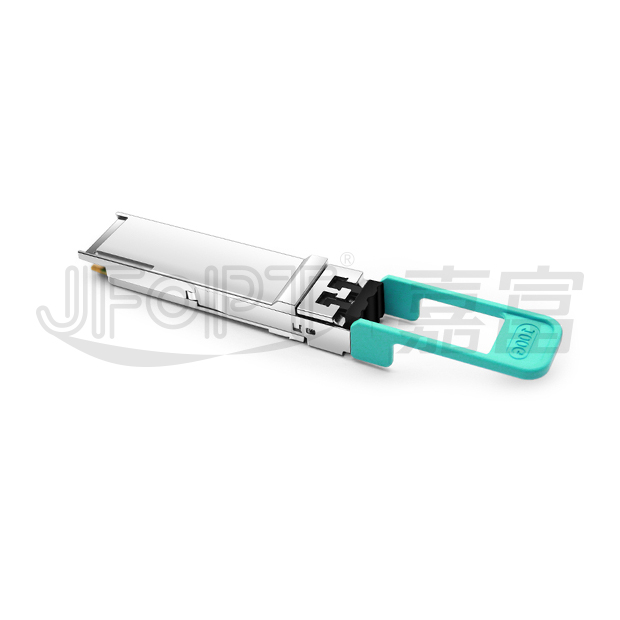

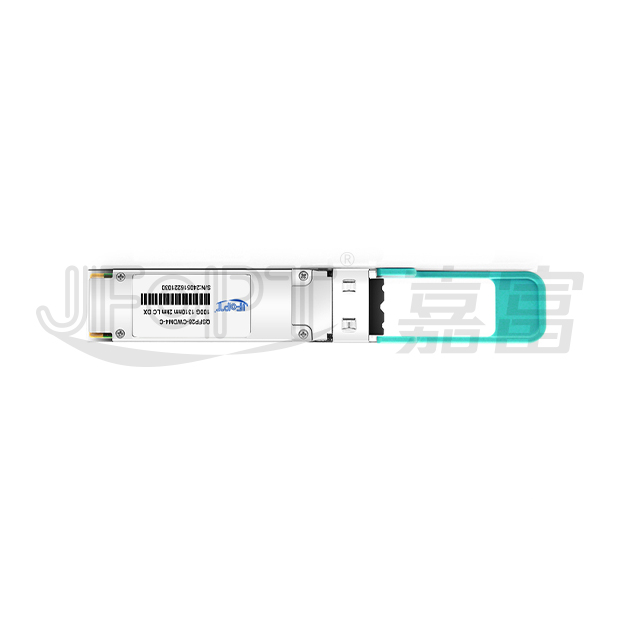

QSFP28 100G CWDM4 2km LC DX光模块
100Gbps QSFP28光模块
型   号:JFTSM-QSFP28-100-CW4-2-LCD
分享:
购买咨询
产品详情
相关资料

产品型号
JFTSM-QSFP28-100-CW4-2-LCD
工厂品牌
JFOPT嘉富
封装形式
QSFP28
光口类型

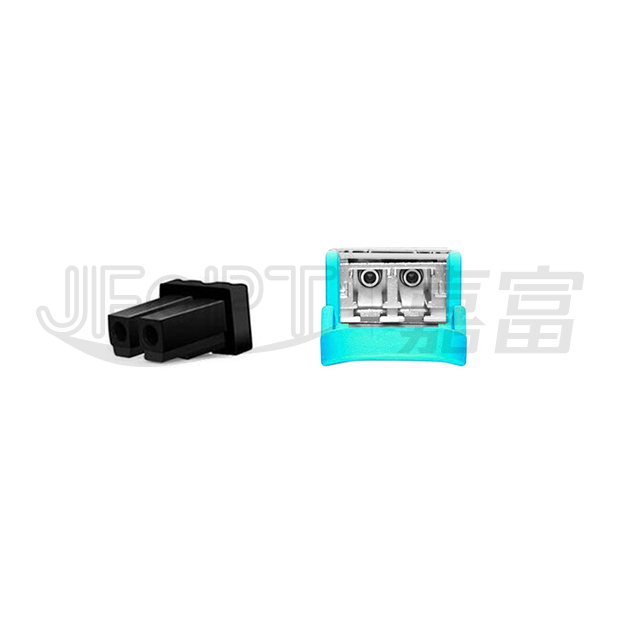

LC DX
最高总速率
100Gbps
每通道速率
25.78125Gbps
最大传输距离
2km
工作波长
1310nm
工作电压
3.3V
光纤型号
SMF
纤芯尺寸
9/125
发射器类型
DFB
接收器类型
IDP
发射功率
-6.5~2.5dBm
接收灵敏度
-7.3dBm
数字诊断(DDM)
YES
接收过载
2.5dBm
功耗
<3.5W
支持协议
SFF-8665:
IEEE 802.3bm.
IEEE 802.3ba.
工作温度(商业级)
0℃~+70℃
储存温度(商业级)
-40℃~+85℃




生产线介绍
PRODUCTION LINE INTRODUCTION


JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。





产品介绍
PRODUCT PRESENTATION


JFOPT QSFP28 100G CWDM4 2公里双工LC光模块是一款紧凑型高集成度4x25G模块,旨在为高端口数100G系统及客户端100G接口提供卓越的传输距离、带宽、密度与成本效益。该模块严格遵循基于CWDM4多源协议1.1版本的100G 4WDM-10行业标准,可在最远2公里传输距离内与其他CWDM4光模块实现无缝互操作。





光模块系列产品
TRANSCEIVER SERIES PRODUCTS






生产及检测设备
PRODUCTION & TESTING EQUIPMENT






产品特点
FEATURES

Electrical interface:retimed CAUI-4 per 100G Ethernet IEEE 802.3bm Annex 83E Hot pluggable
Link budget assumes the use of KR4 FEC bythe host Uncooled CWDM DFB lasers,directly modulated
User controllable transmit input equalization and receiver output amplitude Fiber connector:SMF LC duplex connector
Power  dissipation<3.5W Distance up to 2km
2-wire interface with integrated digital diagnostic monitoring Operating case temperature:0℃~+70℃




应用范围
APPLICATION

Data center interconnect 100G CWDM4 applications with FEC




符合标准
STANDARD COMPLIANCE





绝对最大额定值
ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Min. Max. Unit
Power supply voltage VCC -0.5  +3.6  V
Operating case temperature TC -40  +85
Relative humidity RH 85  %

These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.






推荐的操作环境
RECOMMENDED OPERATING ENVIRONMENT

Parameter Symbol Min Typical Max Unit
Power supply voltage VCC 3.15  3.30  3.45  V
Operating case temperature Tca 0 - 70






电气特性
ELECTRICAL CHARACTERISTICS

Parameter Symbol Min Typical Max Unit Ref

Transmitter

Input differential impedance Rin - 100 - Ω 1
Single-ended input voltage tolerance - -0.3 - 4.0  V -
AC common mode input voltage tolerance - 15 - - mV -
Differential input voltage - 50 - - mV -
Differential input voltage swing,per lane Vin 190 - 1000 mV -

Receiver

Output differential impedance Rout - 100 - Ω 1
Differential output swing,per lane Vout 300 - 900 mV 2
AC common mode output voltage tolerance - - - 7.5 mV -
Single-ended output voltage - -0.3 - 4.0  V -

Notes:

[1]AC coupled.

[2]Into 100 ohm differentialter mination.






发射机规格-光学
TRANSITTER SPECIFICATIONS-OPTICAL

Parameter Symbol Min Typical Max Unit -
Center wavelength Ch0 λ0 1264.5 1271 1277.5 nm -
Ch1 λ1 1284.5 1291 1297.5 nm -
Ch2 λ2 1304.5 1311 1317.5 nm -
Ch3 λ3 1324.5 1331 1337.5 nm -
Bit rate per channel DR 25.78125±100p Gbps 1
Side mode suppression ratio SMSR 30 - - dB -
Average launch power each lane - -6.5 - 2.5 dBm 7
Optical modulation amplitude(each lane) OMA -4.0    2.5 dBm -
Transmit OMA per lane @TDP max - -2.0  - - dBm 2
l launch power in OMA minus TDP,each ane OMA-TDP -5.0  - - dBm -
Transmission&dispersion penalty, each lane TDP - - 3.0  dB 3
Transmitter reflectance - - - -12  dB -
Extinction ratio ER 3.5 - - dB -
Transmitter eyemask definition{X1,X2,X3,Y1,Y2,Y3}
{0.31,0.4,0.45,0.34,0.38,0.4}
CWDM4 MSA technical specifications rev 1.1

Total average launch power Po - - 8.5  dBm -
Average launch power of OFF transmitter,each lane Poff - - -30  dBm -
Optical return loss tolerance ORL - - 20  dB -





接收器规格-光纤
RECEIVER SPECIFICATIONS-OPTICAL

Parameter Symbol Min. Typical Max. Unit -
Center wavelength Ch0 λ0 1264.5 1271 1277.5 nm -
Ch1 λ1 1284.5 1291 1297.5 nm -
Ch2 λ2 1304.5 1311 1317.5 nm -
Ch3 λ3 1324.5 1331 1337.5 nm -
BitRate per channel DR 25.78125±100ppm Gbps 4
Unstressed sensitivity(OMA) OMAin - - -10 dBm 5
Receiver overload PMAX 2.5 - - - -
Stressed sensitivity(OMA) OMAin,str - - -7.3 dBm 6
Optical return loss ORL - - -26 dB -
Vertical eye closure penalty,each lane VECP - - 1.9 dB -
Stressed eye J2 jitter,each lane J2 - - 0.3 UI -
Stressed eye J9 jitter,each lane J9 - - 0.5 UI -
Stressed eye J4 jitter,each lane J4 - - 0.48 UI -
SRS eye mask definition{X1,X2,X3,Y1, Y2,Y3}
{0.39,0.5,0.5,0.39,0.39,0.4}
CWDM4 MSA Technical Specifications Rev 1.1

-
Damage threshold,eachlane - 3.5 - - dB -

Notes:

[1]Transmitter consists of 4lasersoperating at25.78Gb/s each.

[2]At maximum TDP.

[3]TDP value does not include MPI penalty.

[4]Receiver consists of4 photodetectors operating at 25.78Gb/s each.

[5]Sensitivity is specified at 5x10-5 BER.

[6]Measured with CWDM4 MSA2 conformance test signal at TP3 for 5x10-5BER.

[7]Power value and power accuracy are with allchannels on.






一般规格
GENERAL SPECIFICATIONS

Parameter Symbol Min. Typical Max. Unit Ref.
Bit rate(all wavelengths combined) BR - - 103.1 Gb/s -
BitError ratio @25.78Gb/s BER - - 5x10-5 - 1

Maximum supported distances

Fiber type - - - - - -
SMF per G.652 LossBdgt - - 5 dB 2

Notes:

[1]Tested with a 231-1PRBS.

[2]This 5dB loss budget includes2.5dB optical coding gain from FEC on the host [RS-FEC(528,514)per Clause 91].The maximum  informative link lengthis 2km.The option to bypass RS-FEC is not supported.Loss budget may include upto 1dB MPIloss penalty with worse caseTransmitter and worst case connector MPI.

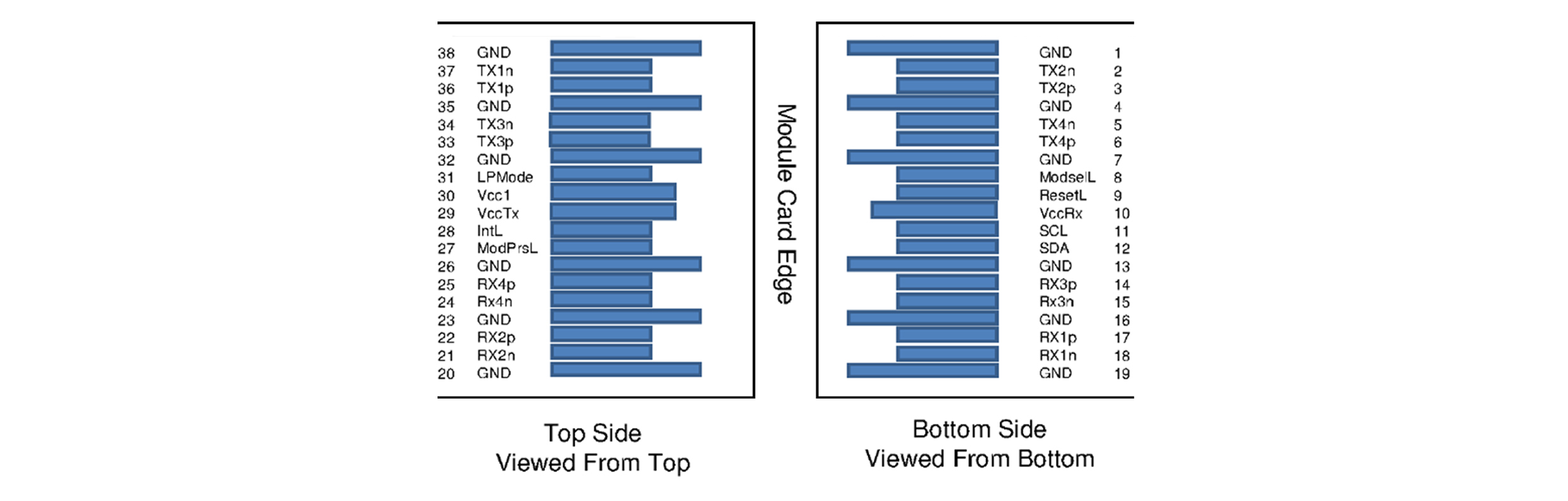

电气焊盘布局
ELECTRICAL PAD LAYOUT







引脚定义
PIN DEFINITION

Pin Symbol Name/Description
1 GND Ground
2 Tx2n Transmitter inverted data input
3 Tx2p Transmitter non-inverted data input
4 GND Ground
5 Tx4n Transmitter inverted data input
6 Tx4p Transmitter non-inverted data input
7 GND Ground
8 ModSelL Module select
9 ResetL Module reset
10 VCCRx +3.3V power supply receiver
11 SCL 2-wire serial interface clock
12 SDA 2-wire serial interface data
13 GND Ground
14 Rx3p Receiver non-inverted data output
15 Rx3n Receiver inverted data output
16 GND Ground
17 Rxlp Receiver non-inverted data output
18 Rx1n Receiver inverted data output
19 GND Ground
20 GND Ground
21 Rx2n Receiver inverted data output
22 Rx2p Receiver non-inverted data output
23 GND Ground
24 Rx4n Receiver inverted data output
25 Rx4p Receiver non-inverted data output
26 GND Ground
27 ModPrsL Module present
28 IntL Interrupt
29 VCCTx +3.3V power supply transmitter
30 VCC1 +3.3V power Supply
31 LPMode Low power mode
32 GND Ground
33 Tx3p Transmitter non-inverted data input
34 Tx3n Transmitter inverted data input
35 GND Ground
36 Txlp Transmitter non-inverted dataInput
37 Tx1n Transmitter inverted data input
38 GND Ground
