产品型号 |
JFTSM-QSFP28-100-85-01(SR4)-MPO8/12 |
工厂品牌 |
JFOPT嘉富 |
封装形式 |
QSFP28 |
光口类型 |
MPO 8C/12C |
最高总速率 |
100Gbps |
每通道速率 |
25.78125Gbps |
OM3最大传输距离 |
70m |
OM4最大传输距离 |
100m |
工作波长 |
850nm |
工作电压 |
3.3V |
光纤型号 |
MMF |
纤芯尺寸 |
50/125 |
发射器类型 |
VCSEL |
接收器类型 |
PIN |
发射功率 |
-6~2.4dBm |
接收灵敏度 |
-5.2dBm |
数字诊断(DOM) |
YES |
接收过载 |
2.4dBm |
功耗 |
<2.5W |
支持协议 |
IEEE 802.3bm 100GBASE SR4 |
工作温度(商业级) |
0℃~+70℃ |
储存温度(商业级) |
-40℃~+85℃ |
工作温度(扩展级) |
-20℃~+85℃ |
储存温度(扩展级) |
-40℃~+85℃ |
工作温度(工业级) |
-40℃~+85℃ |
储存温度(工业级) |
-40℃~+85℃ |
生产线介绍
PRODUCTION LINE INTRODUCTION
JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。
产品介绍
PRODUCT PRESENTATION

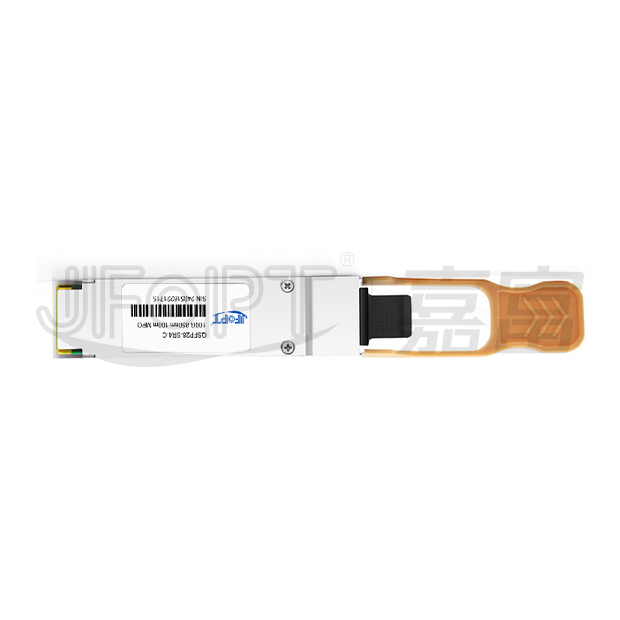

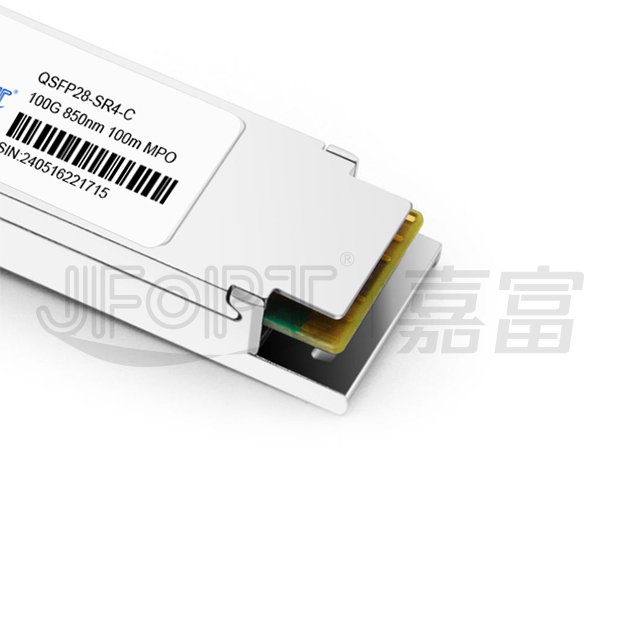

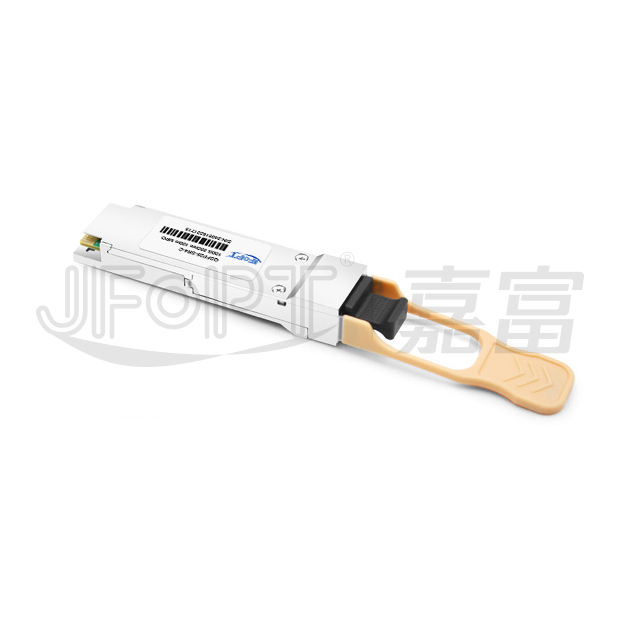

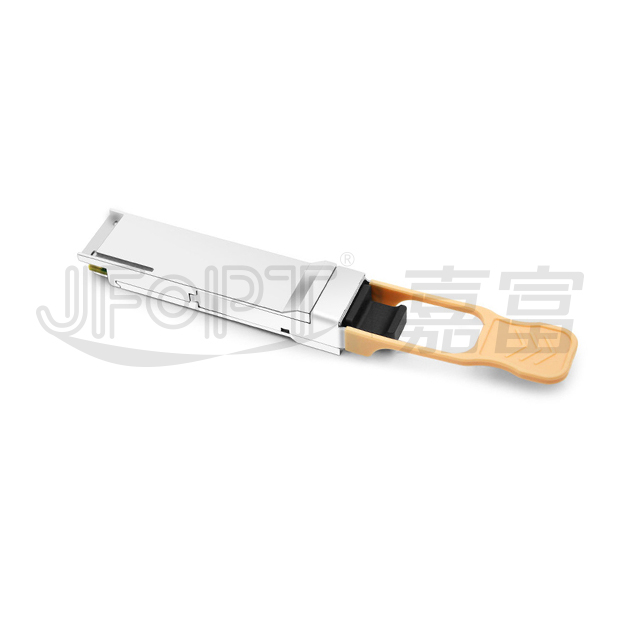

JFOPT QSFP28 100G 850nm 100m SR4 MPO 8/12光模块是一款高性能、高度集成的4x25G模块,专为优化高端口密度100G系统及客户端100G接口的传输距离、带宽、密度和成本而设计。该模块支持每通道25Gbps数据速率,可在OM3光纤上实现70米传输距离,在OM4光纤上实现100米传输距离。该模块专为多模光纤系统设计,标称工作波长为850nm。采用38针边缘式电连接器和8/12芯MPO光纤接口,确保无缝集成至高速网络环境。
光模块系列产品
TRANSCEIVER SERIES PRODUCTS
生产及检测设备
PRODUCTION & TESTING EQUIPMENT
4 channels full-duplex transceiver |
Transmission data rate 25.78125Gbps per channel |
4 channels 850nm VCSEL array |
4 channels PIN photo detector array |
Hot-pluggable QSFP28 form factor |
Low power consumption<2.5W |

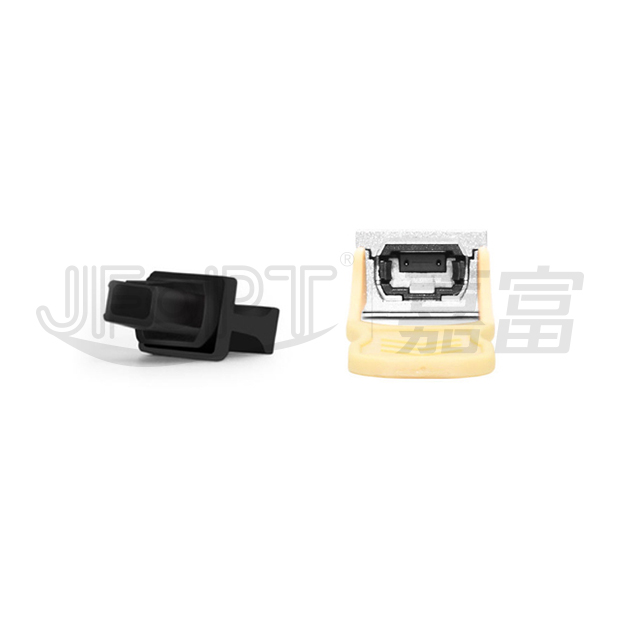

Single 1X12 MPO connector receptacle |
Hot-pluggable electrical interface |
Operating case temperature:0C~+70°C/-20C~+85C/-40℃~+85℃ |
|
IEEE 802.3bm 100GBASE SR4 |
|
绝对最大额定值
ABSOLUTE MAXIMUM RATINGS
Parameter |
Symbol |
Min. |
Max. |
Unit |
Power supply voltage |
VCC |
-0.5 |
+3.6 |
V |
Storage temperature |
TC |
-40 |
+85 |
℃ |
Relative humidity |
RH |
5 |
85 |
% |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
推荐的操作环境
RECOMMENDED OPERATING ENVIRONMENT
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Power supply voltage |
VCC |
3.15 |
3.30 |
3.45 |
V |
Operating case temperature |
Tca |
0 |
- |
70 |
℃ |
Tca |
-20 |
- |
85 |
Tca |
-40 |
- |
85 |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
电气特性
ELECTRICAL CHARACTERISTICS
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Ref |
Transmitter
|
Input differential impedance |
Rin |
- |
100 |
- |
Ω |
- |
Differential input voltage swing,per lane |
Vin |
300 |
- |
1100 |
mV |
- |
Input logic level high |
VIH |
2.0 |
- |
VCC+0.3 |
V |
- |
Input logic level low |
VIL |
Vee |
- |
Vee+0.8 |
V |
- |
Receiver
|
Output differential impedance |
Rout |
- |
100 |
- |
Ω |
- |
Differential output swing,per lane |
Vout |
500 |
- |
800 |
mV |
- |
Output logic level high |
VOH |
2.0 |
- |
VCC+0.3 |
V |
- |
Output logic level low |
VOL |
0 |
- |
0.4 |
V |
- |
发射机规格-光学
TRANSITTER SPECIFICATIONS-OPTICAL
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
- |
Signaling speed per lane |
- |
25.78125±100ppm |
Gb/s |
- |
Center wavelength |
λ |
840 |
850 |
860 |
nm |
- |
RMS spectral width |
△λ |
- |
- |
0.6 |
nm |
- |
Average launch power per Lane |
Po |
-6 |
- |
2.4 |
dBm |
- |
Transmit OMA per Lane |
OMA |
-6.4 |
- |
3 |
dBm |
- |
Launch power [OMA]minus TDEC per Lane |
P-TDEC |
-7.3 |
- |
- |
dBm |
- |
Extinction ratio |
ER |
3 |
- |
- |
dB |
- |
Optical return loss tolerance |
ORL |
- |
|
12 |
dB |
- |
Average launch power of OFF transmitter,each lane |
- |
- |
- |
-30 |
dBm |
- |
接收器规格-光纤
RECEIVER SPECIFICATIONS-OPTICAL
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
- |
Bit rate per channel |
DR |
25.78125±100ppm |
Gb/s |
- |
Center wavelength |
λ |
840 |
850 |
860 |
nm |
- |
Damage threshold |
DT |
3.4 |
- |
- |
dBm |
- |
Average receive power,each lane |
RXPOW |
-10.3 |
- |
2.4 |
dbm |
- |

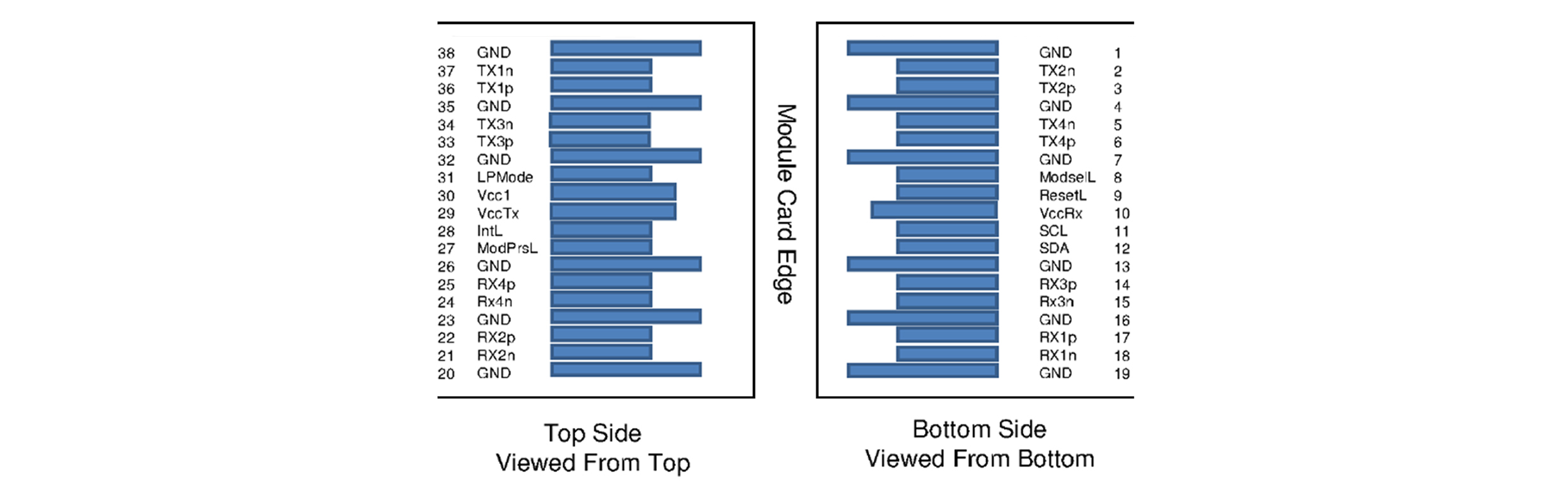

QSFP28 收发器电气焊盘布局
QSFP28 TRANSCEIVER ELECTRICAL PAD LAYOUT

Pin |
Symbol |
Name/Description |
1 |
GND |
Ground |
2 |
Tx2n |
Transmitter inverted data input |
3 |
Tx2p |
Transmitter non-inverted data input |
4 |
GND |
Ground |
5 |
Tx4n |
Transmitter inverted data input |
6 |
Tx4p |
Transmitter non-inverted data input |
7 |
GND |
Ground |
8 |
ModSelL |
Module select |
9 |
ResetL |
Module reset |
10 |
VCCRx |
+3.3V power supply receiver |
11 |
SCL |
2-wire serial interface clock |
12 |
SDA |
2-wire serial interface data |
13 |
GND |
Ground |
14 |
Rx3p |
Receiver non-inverted data output |
15 |
Rx3n |
Receiver inverted data output |
16 |
GND |
Ground |
17 |
Rxlp |
Receiver non-inverted data output |
18 |
Rx1n |
Receiver inverted data output |
19 |
GND |
Ground |
20 |
GND |
Ground |
21 |
Rx2n |
Receiver inverted data output |
22 |
Rx2p |
Receiver non-inverted data output |
23 |
GND |
Ground |
24 |
Rx4n |
Receiver inverted data output |
25 |
Rx4p |
Receiver non-inverted data output |
26 |
GND |
Ground |
27 |
ModPrsL |
Module present |
28 |
IntL |
Interrupt |
29 |
VCCTx |
+3.3V power supply transmitter |
30 |
VCC1 |
+3.3V power Supply |
31 |
LPMode |
Low power mode |
32 |
GND |
Ground |
33 |
Tx3p |
Transmitter non-inverted data input |
34 |
Tx3n |
Transmitter inverted data input |
35 |
GND |
Ground |
36 |
Txlp |
Transmitter non-inverted dataInput |
37 |
Tx1n |
Transmitter inverted data input |
38 |
GND |
Ground |
