产品型号
|
JFTSM-SFP-1.25-85-055-LCD
|
工厂品牌
|
JFOPT嘉富
|
|
封装形式
|
SFP
|
光口类型
|
Duplex LC
|
|
最高总速率
|
up to 1.25Gbps
|
每通道速率
|
-
|
|
最大传输距离
|
550M
|
||
|
工作波长
|
850nm
|
工作电压
|
3.3V
|
|
光纤型号
|
MMF
|
纤芯尺寸
|
50/125µm
|
|
发射器类型
|
VCSEL
|
接收器类型
|
IDP
|
|
发射功率
|
-9.5~3dBm
|
接收灵敏度
|
-17Bm
|
|
数字诊断
|
YES
|
接收过载
|
-3dBm
|
|
功耗
|
<1W
|
支持协议
|
SFP MSA
|
|
工作温度(商业级)
|
0℃~+70℃
|
储存温度（商业级）
|
-40℃~+85℃
|
|
工作温度(工业级)
|
-40℃~+85℃
|
储存温度（工业级）
|
-40℃~+85℃
|
JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

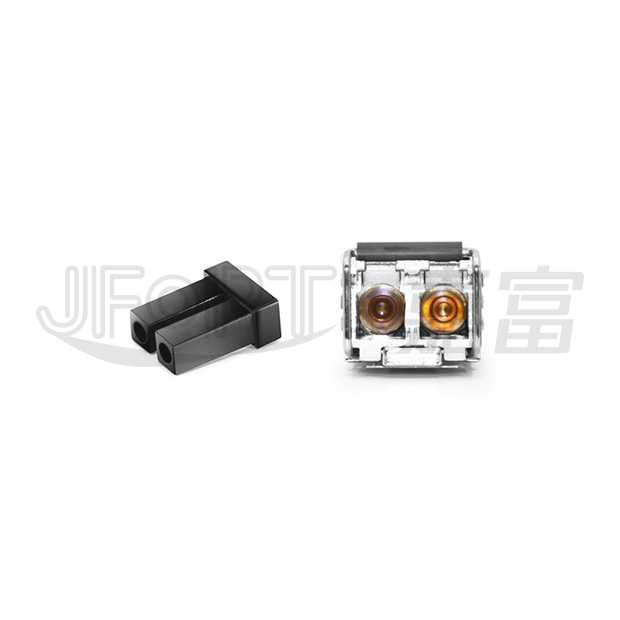

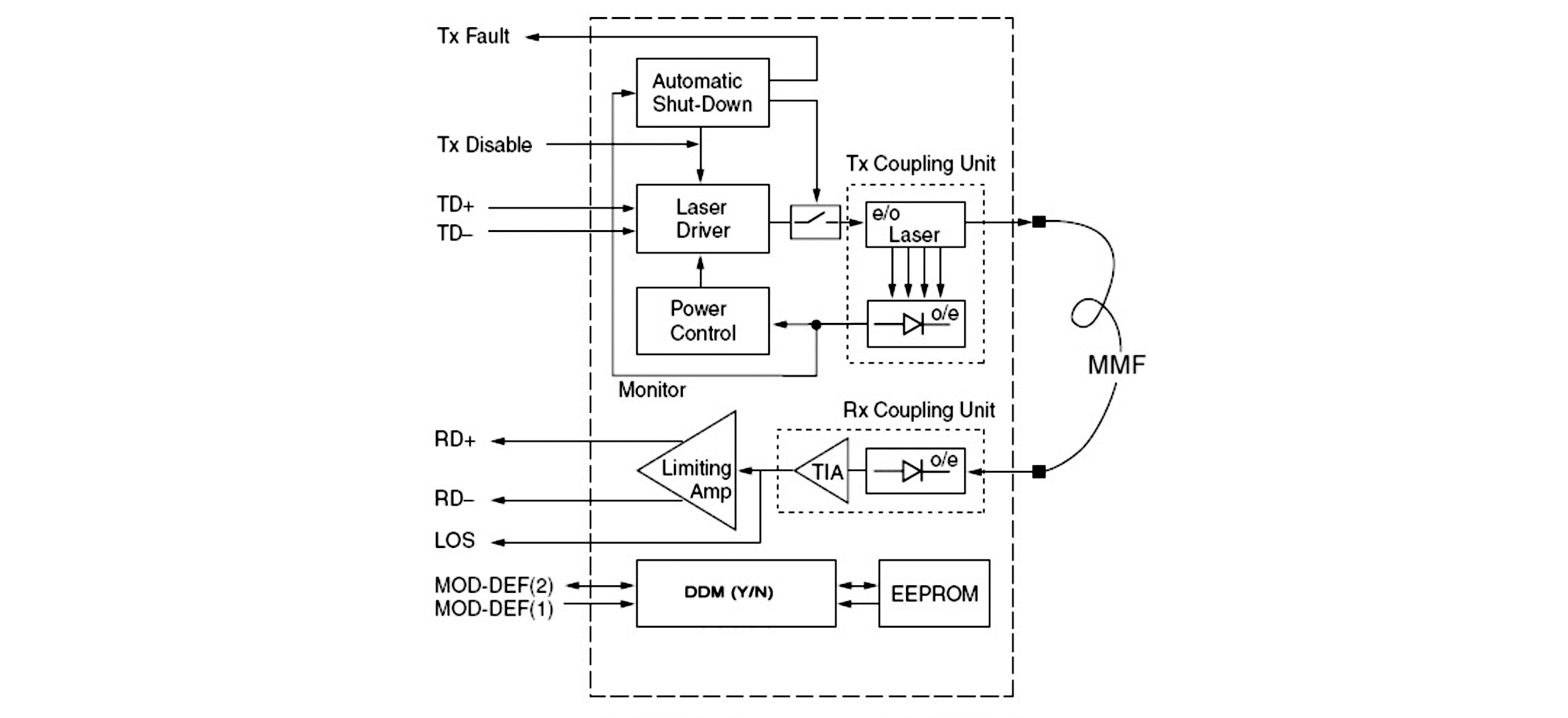

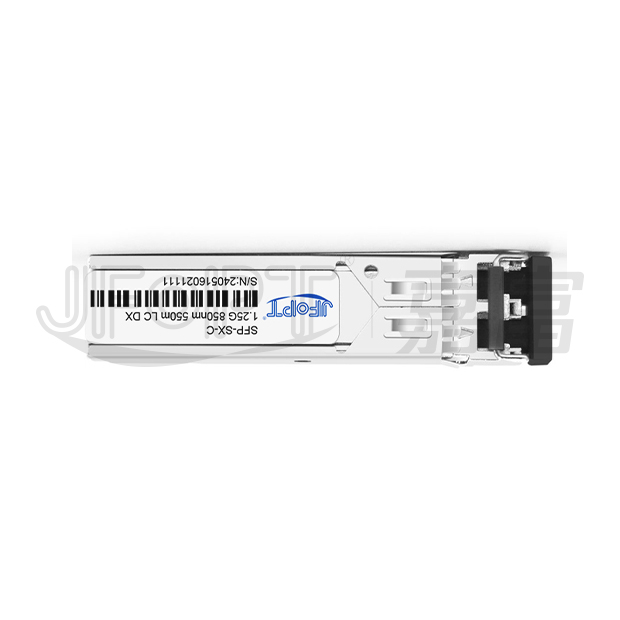

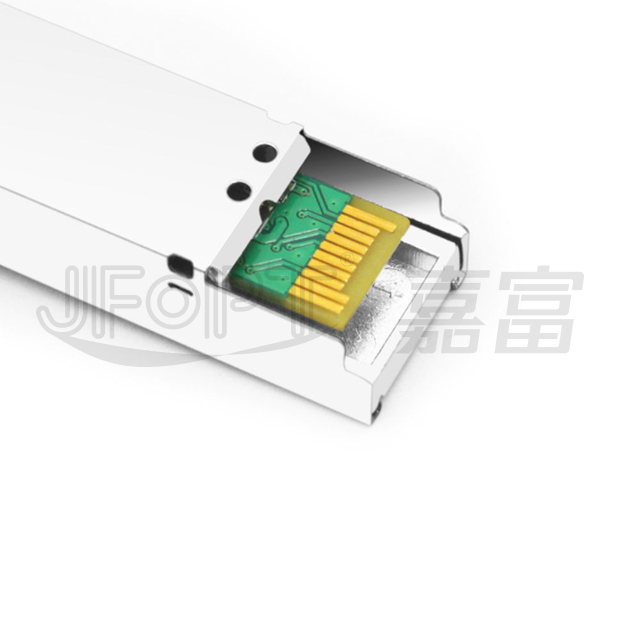

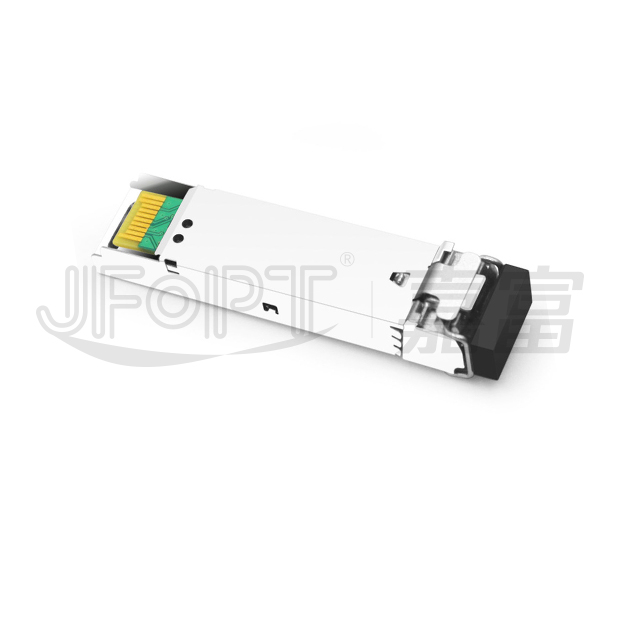

JFOPT SFP 1.25G 850nm 550m LC DX是专为高速双向光数据通信设计的紧凑型多模光模块，支持550米传输距离；该小型可插拔(SFP)模块兼容千兆以太网1000BASE-SX及光纤通道FC-PH-2标准（100-M5-SN-1/100-M6-SN-1），配备20-pin接口实现热插拔功能。针对多模光纤850nm波长优化设计：其发射端采用符合IEC-60825 Class 1安全标准的垂直腔面发射激光器(VCSEL)，接收端集成先进光检测系统——包含光学头内的砷化镓(GaAs)探测器前置放大器(IDP)及精密限幅后置放大器集成电路。
| Operating data rate up to 1.25Gbps | 850nm VCSEL laser transmitter | ||||||||
| 550m with 50/125µm MMF 300m on 62.5/125µm MMF |
Single 3.3V power supply and LVTTL logic interface | ||||||||
| Hot-pluggable SFP footprint duplex LC connector interface | Operating case temperature Standard: 0℃~+70℃ Industrial: -40℃~+85℃ |
| Gigabit ethernet | Fiber channel | |||||||
| Switch to switch interface | Other optical Links | |||||||
| Part No. | Data Rate | Fiber | Distance | Interface | Temperature | DDMI | |||
| JFTSM-SFP-1.25-85-055-LCD | 1.25Gbps | MMF | 550m | LC | Standard | YES | |||
| Industrial | |||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Storage temperature | TS | -4.0 | +85 | ℃ | |||||
| Supply voltage | VCC | -0.5 | +3.6 | V | |||||
| Operating relative humidity | - | - | 95 | % | |||||
Exceeding any one of these values may destroy the device immediately. |
|||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Operating case temperature | Tc | JFTSM-SFP-1.25-85-055-LCD | 0 | - | +70 | °C | |||
| -40 | - | +85 | |||||||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Power supply current | Icc | - | - | 300 | mA | ||||
| Date rate | GBE | - | - | 1.25 | - | Gbps | |||
| FC | - | 1.063 | -V | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes | |||
Transmitter |
|||||||||
| LVPECL inputs(Differential) | Vin | 500 | - | 2000 | mVpp | AC coupled inputs | |||
| Input impedance (Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohm @ DC | |||
| TX_disable | Disable | - | 2 | - | Vcc | V | - | ||
| Enable | - | 0 | - | 0.8 | - | ||||
| TX_FAULT | Fault | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.5 | - | ||||
Receiver |
|||||||||
| LVPECL outputs (Differential) | Vout | 370 | - | 2000 | mVpp | AC coupled output | |||
| Output impedance (Differential) | Zout | 85 | 100 | 115 | ohms | - | |||
| RX_LOS | LOS | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.8 | V | - | |||
| MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| 50µm core diameter MMF | L | - | 550 | - | m | ||||
| Data rate | - | - | 1.063/1.25 | - | Gbps | ||||
Transmitter |
|||||||||
| Center wavelength | λC | 830 | 850 | 860 | nm | ||||
| Spectral width (RMS) | Δλ | - | - | 0.85 | nm | ||||
| Average output power | Pout | -9.5 | - | -3 | dBm | ||||
| Extinction ratio | ER | 9 | - | dB | |||||
| Rise/Fall time(20%～80%) | tr/tf | - | - | 260 | ps | ||||
| Total jitter | TJ | - | - | 0.43 | UI | ||||
| Output optical eye | IEEE802.3z and ANSI fiber channel compliant | ||||||||
| TX disable assert time | t_off | - | - | 10 | us | ||||
Receiver |
|||||||||
| Center wavelength | λC | 760 | - | 860 | nm | ||||
| Receiver sensitivity | Pmin | -3 | - | -17 | dBm | ||||
| Receiver overload | Pmax | - | - | - | dBm | ||||
| Return loss | - | 12 | - | - | dB | ||||
| LOS de-assert | LOSD | - | - | -18 | dBm | ||||
| LOS assert | LOSA | -35 | - | - | dBm | ||||
| LOS hysteresis | - | 1 | - | - | dB | ||||

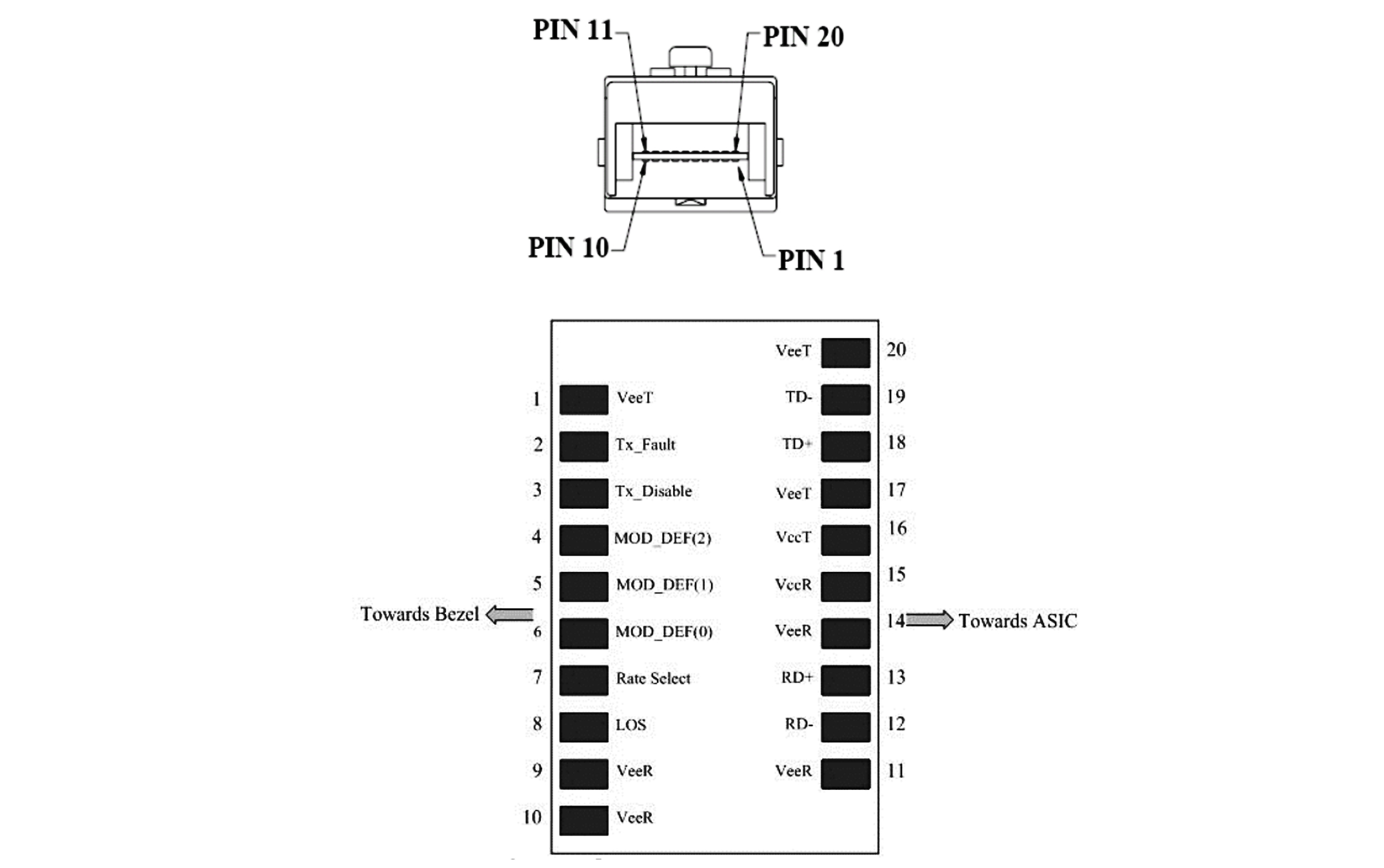

| Pin | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | 5) | |||||
| 2 | TX Fault | Transmitter fault indication | 3 | 1) | |||||
| 3 | TX Disable | Transmitter disable | 3 | 2) Module disables on high or open | |||||
| 4 | MOD-DEF2 | SDA | 3 | 3) 2 wire serial ID interface. | |||||
| 5 | MOD-DEF1 | SCL | 3 | 3) 2 wire serial ID interface. | |||||
| 6 | MOD-DEF0 | MOD_ABS | 3 | 3) Grounded within the module. | |||||
| 7 | Rate Select | Not connect | 3 | Function not available | |||||
| 8 | LOS | Loss of signal | 3 | 4) | |||||
| 9 | VeeR | Receiver ground | 1 | 5) | |||||
| 10 | VeeR | Receiver ground | 1 | 5) | |||||
| 11 | VeeR | Receiver ground | 1 | 5) | |||||
| 12 | RD- | Inv. received data out | 3 | 6) | |||||
| 13 | RD+ | Received data out | 3 | 7) | |||||
| 14 | VeeR | Receiver ground | 1 | 5) | |||||
| 15 | VccR | Receiver power | 2 | 7) 3.3V ± 5% | |||||
| 16 | VccT | Transmitter power | 2 | 7) 3.3V ± 5% | |||||
| 17 | VeeT | Transmitter ground | 1 | 5) | |||||
| 18 | TD+ | Transmit data In | 3 | 8) | |||||
| 19 | TD- | Inv. transmit data In | 3 | 8) | |||||
| 20 | VeeT | Transmitter ground | 1 | 5) | |||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kinds. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10K resistor on the host board. The pull-up voltageshall be VccT or VccR .
Mod-Def 0 is grounded by the module to indicate that the module is present
Mod-Def 1 is the clock line of two wire serial interface for serial ID
Mod-Def 2 is the data line of two wire serial interface for serial ID
4) LOS is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use).Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) VeeR and VeeT may be internally connected within the SFP module.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP connector pin. Maximum supply current is 300Ma. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1ohm should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value.VccR and VccT may be internally connected within the SFP transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module.
