产品型号
|
JFTSM-SFP-0155-85-2-LCD
|
工厂品牌
|
JFOPT嘉富
|
|
封装形式
|
SFP
|
光口类型
|
Duplex LC
|
|
最高总速率
|
≤155Mbps
|
每通道速率
|
-
|
|
最大传输距离
|
2km
|
||
|
工作波长
|
850nm
|
工作电压
|
3.3V
|
|
光纤型号
|
MMF
|
纤芯尺寸
|
50/125
|
|
发射器类型
|
VCSEL
|
接收器类型
|
IDP
|
|
发射功率
|
-9.5~-4dbm
|
接收灵敏度
|
-18dBm
|
|
数字诊断
|
YES
|
接收过载
|
-3dBm
|
|
功耗
|
<1W
|
支持协议
|
SFP MSA SFF-8472
|
|
工作温度(商业级)
|
0℃~+70℃
|
储存温度（商业级）
|
-40℃~+85℃
|
|
工作温度(工业级)
|
-40℃~+85℃
|
储存温度（工业级）
|
-40℃~+85℃
|
JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

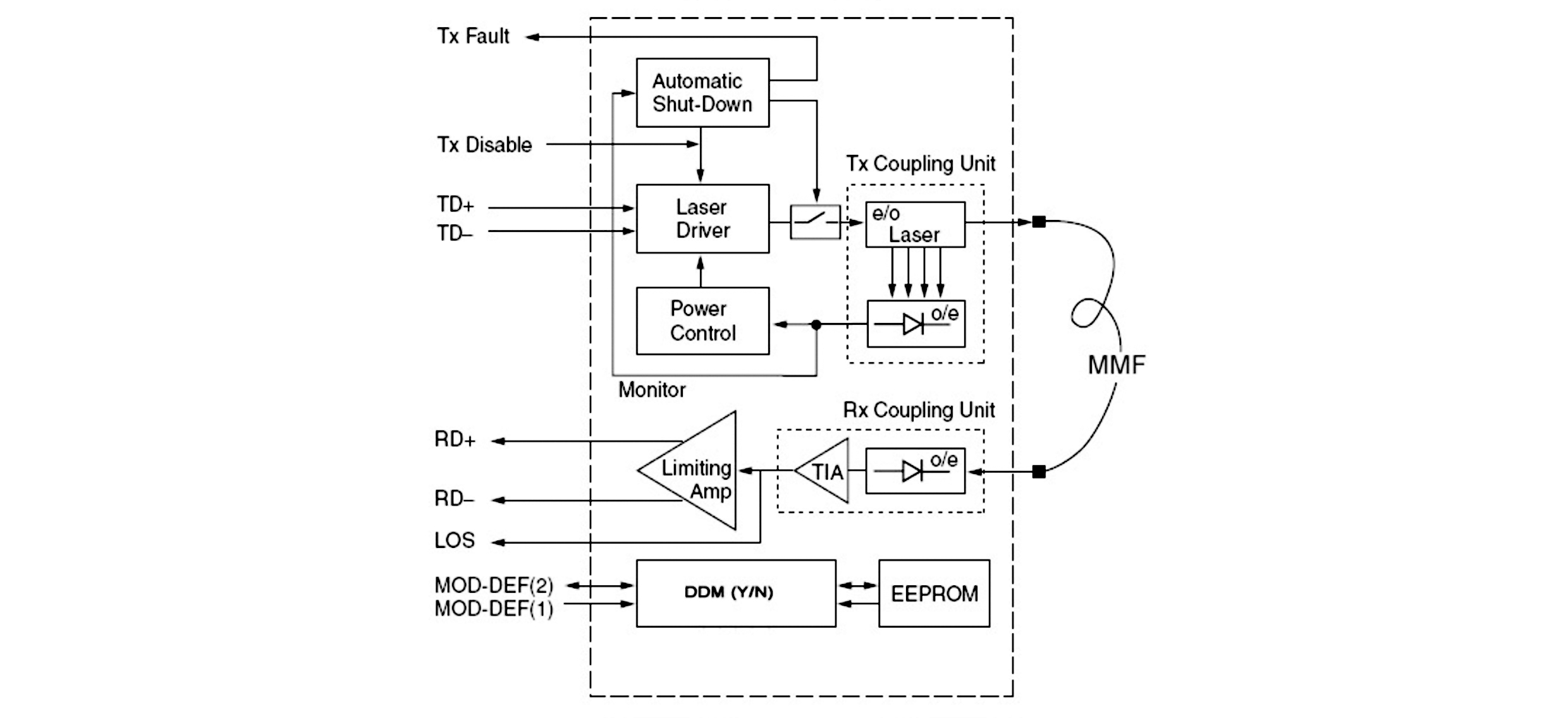

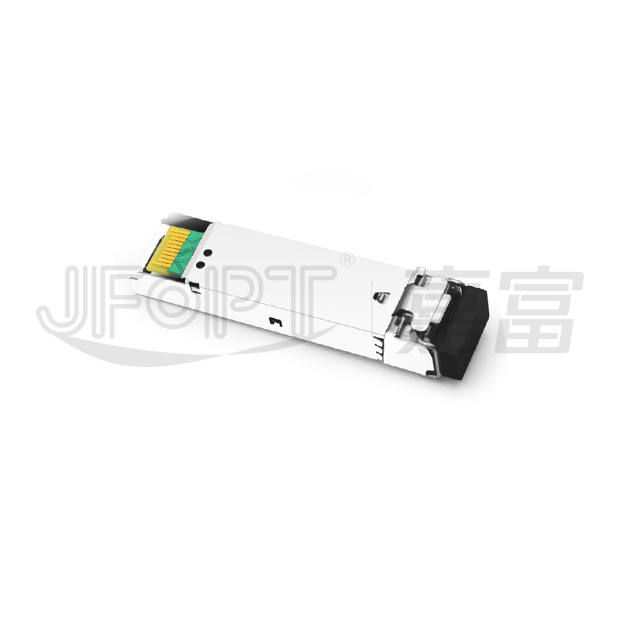

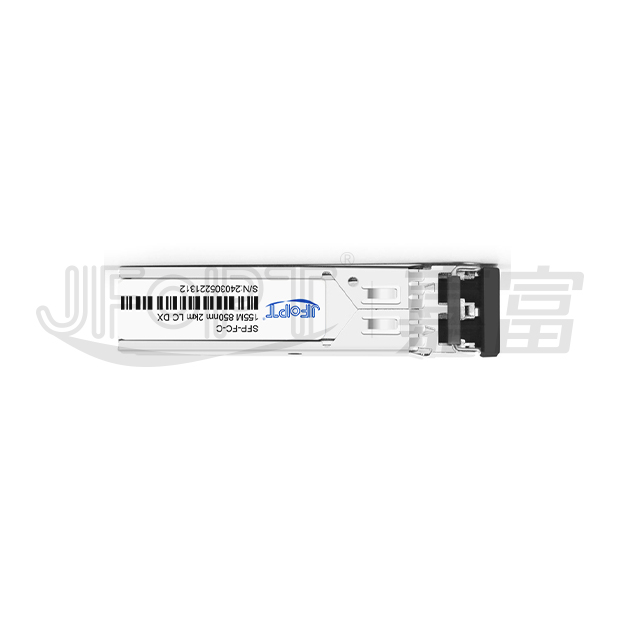

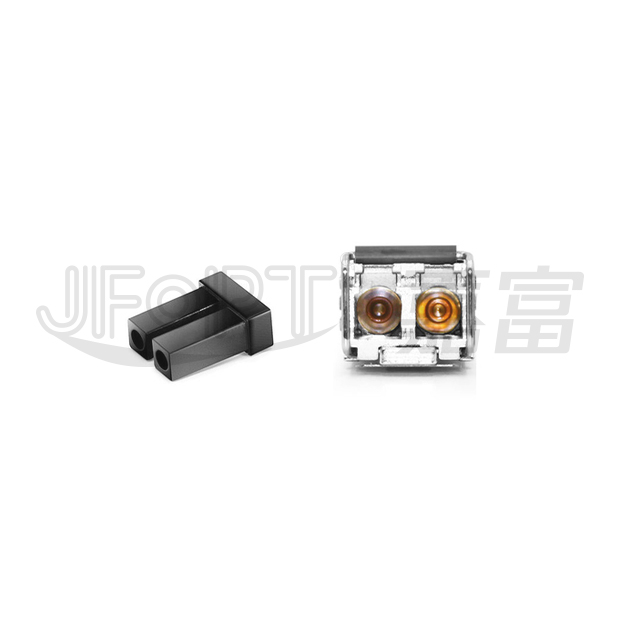

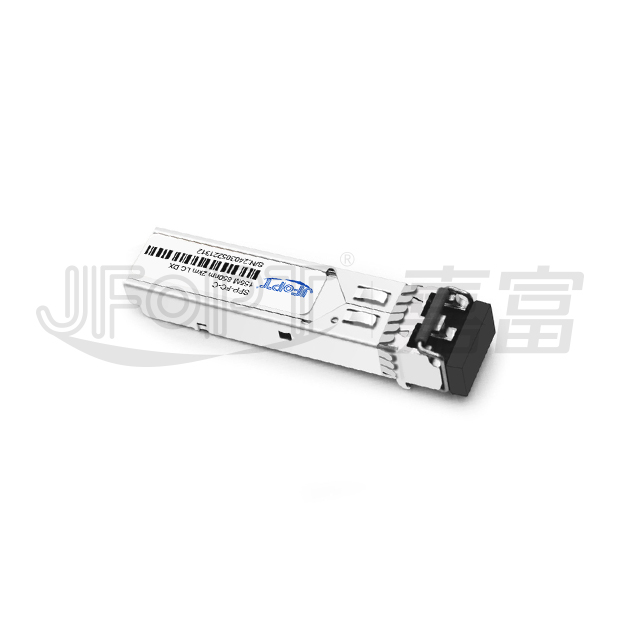

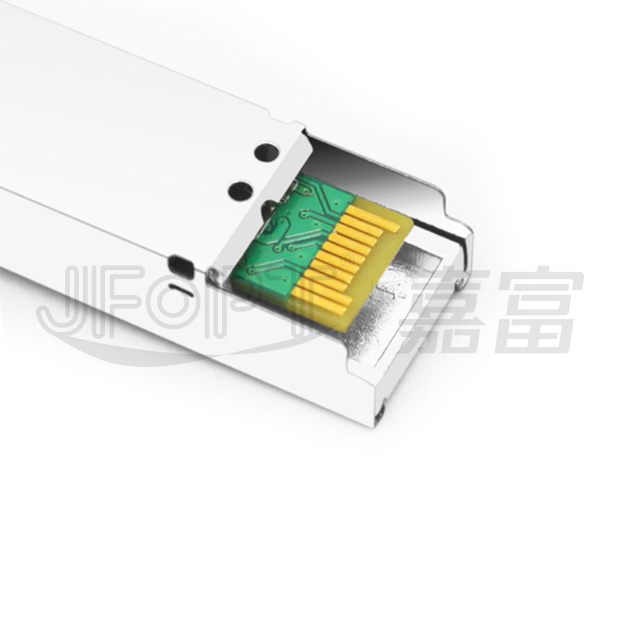

JFTSM SFP 155M 850nm LC DX是一款紧凑型小型可插拔模块，专为双工光数据通信设计，尤其适用于快速以太网（Fast Ethernet）应用场景。该模块配备20-pin SFP连接器，支持热插拔功能，便于快速安装与维护。针对多模光纤优化设计，工作波长为标准的850nm。发射端技术采用高性能多量子阱（MQW）垂直腔面发射激光器（VCSEL），符合IEC 60825标准的Class 1激光安全规范，确保人眼安全。接收端技术集成先进光学检测系统，包含：光学接口内嵌的砷化镓（GaAs）探测器前置放大器（IDP），实现高效光信号转换；高精度限幅后置放大器集成电路，保障信号接收与处理的稳定性。完全遵循SFF-8472 SFP多源协议（MSA），确保行业级兼容性与设备间互操作性，可无缝集成至各类网络系统。模块支持2公里传输距离，采用LC双工接口，适用于多模光纤环境，满足短距离高速数据传输需求。
| 850nm VCSEL laser transmitter | 2km with 50/125 µm MMF 1km with 62.5/125 µm MMF |
||||||||
| Single 3.3V power supply and TTL logic inter | Hot-pluggable SFP footprint duplex LC connector interface | ||||||||
| Operating temperature Standard: 0℃~+70℃ Industrial: -40℃~+85℃ |
Digital diagnostic monitor interface compatible with SFF-8472 |
| Fast ethernet | Other optical links | |||||||
| Part No. | Data Rate | Fiber | Distance | Interface | Temperature | DDMI | |||
| JFTSM-SFP-0155-85-2-LCD | 155Mbps | MMF | 2km | LC | Standard | YES | |||
| Industrial | |||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Storage temperature | TS | -4.0 | +85 | ℃ | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
| Operating relative humidity | - | - | 95 | % | |||||
Exceeding any one of these values may destroy the device immediately |
|||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Operating case temperature | Tc | JFTSM-SFP-0155-85-2-LCD | 0 | - | +70 | °C | |||
| -40 | - | +85 | |||||||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Power supply current | Icc | - | - | 300 | mA | ||||
| Date rate | FE | - | - | 125 | - | Mbps | |||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes | |||
Transmitter |
|||||||||
| LVPECL inputs(Differential) | Vin | 400 | - | 2000 | mVpp | AC coupled inputs | |||
| Input impedance (Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohm @ DC | |||
| TX_disable | Disable | - | 2 | - | Vcc+0.3 | V | - | ||
| Enable | - | 0 | - | 0.8 | - | ||||
| TX_FAULT | Fault | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.5 | - | ||||
Receiver |
|||||||||
| LVPECL outputs (Differential) | Vout | 400 | - | 2000 | mVpp | AC coupled output | |||
| Output impedance (Differential) | Zout | 85 | 100 | 115 | ohms | - | |||
| RX_LOS | LOS | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.8 | V | - | |||
| MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| 50µm core diameter MMF | L | - | 2 | - | km | ||||
| Data rate | - | - | 125 | - | Mbps | ||||
Transmitter |
|||||||||
| Center wavelength | λC | 830 | 850 | 860 | nm | ||||
| Spectral width (RMS) | Δλ | - | - | 0.85 | nm | ||||
| Average output power | Pout | -9.5 | - | -4 | dBm | ||||
| Extinction ratio | ER | 8.2 | - | - | dB | ||||
| Rise/Fall time(20%～80%) | tr/tf | - | - | 3 | ps | ||||
| Total jitter | TJ | - | - | 1 | UI | ||||
| Output optical eye | IEEE 802.3 compliant | ||||||||
| TX disable assert time | t_off | - | - | 10 | us | ||||
Receiver |
|||||||||
| Center wavelength | λC | 760 | - | 860 | nm | ||||
| Receiver sensitivity | Pmin | - | - | -18 | dBm | ||||
| Receiver overload | Pmax | -3 | - | - | dBm | ||||
| Return loss | - | 14 | - | - | dB | ||||
| LOS de-assert | LOSD | - | - | -19 | dBm | ||||
| LOS assert | LOSA | -45 | - | - | dBm | ||||
| LOS hysteresis | - | 0.5 | - | - | dB | ||||

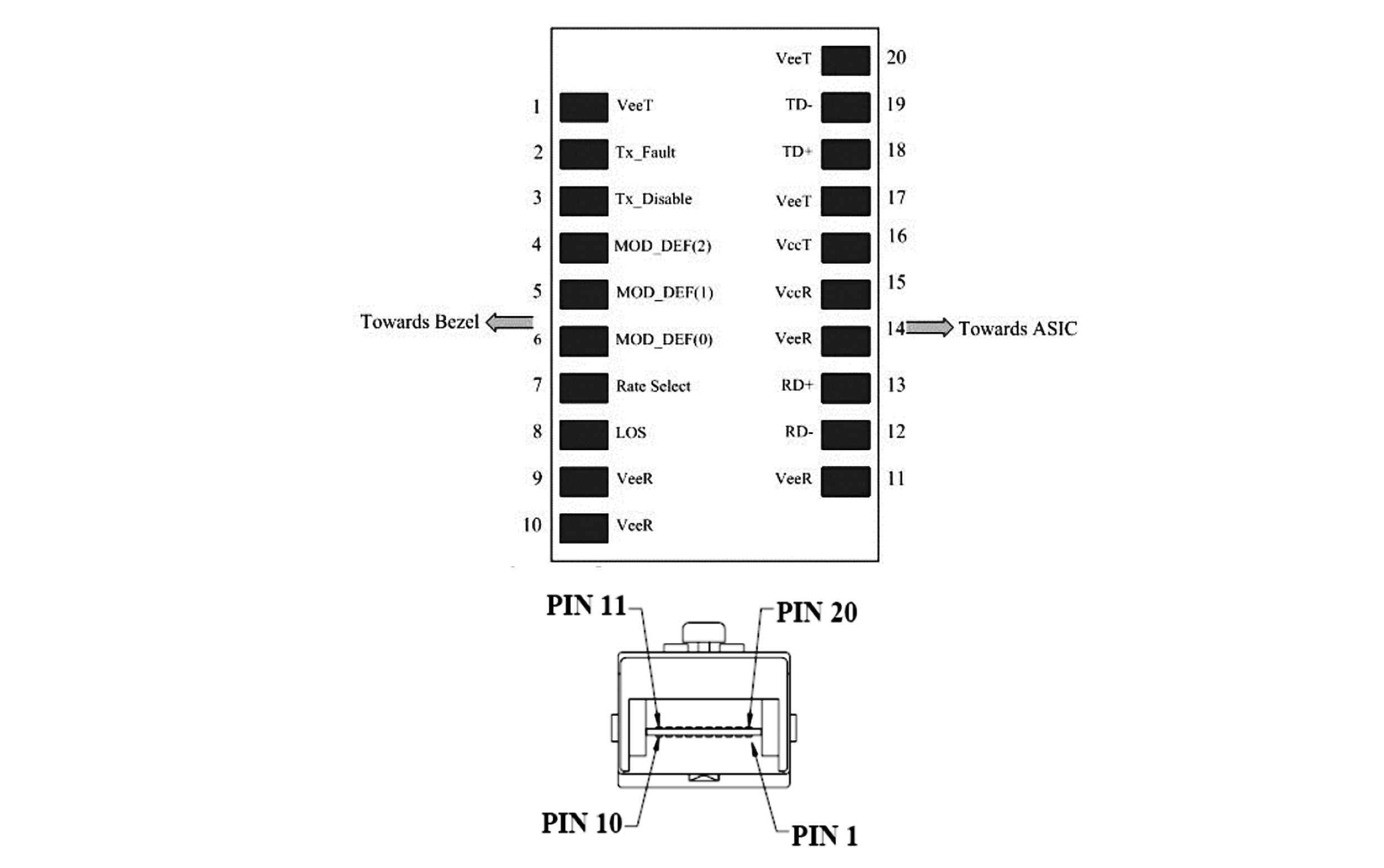

| Pin | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | - | |||||
| 2 | TX fault | Transmitter fault indication | 3 | 1) | |||||
| 3 | TX disable | Transmitter disable | 3 | 2) Module disables on high or open | |||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | 3) Data line for serial ID. | |||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | 3) Clock line for serial ID. | |||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | 3) Grounded within the module. | |||||
| 7 | Rate select | Not connect | 3 | Function not available | |||||
| 8 | LOS | Loss of signal | 3 | 4) | |||||
| 9 | VeeR | Receiver ground | 1 | 5) | |||||
| 10 | VeeR | Receiver ground | 1 | 5) | |||||
| 11 | VeeR | Receiver ground | 1 | 5) | |||||
| 12 | RD- | Inv. received data out | 3 | 6) | |||||
| 13 | RD+ | Received data out | 3 | 6) | |||||
| 14 | VeeR | Receiver ground | 1 | 5) | |||||
| 15 | VccR | Receiver power | 2 | 7) 3.3V ± 5% | |||||
| 16 | VccT | Transmitter power | 2 | 7) 3.3V ± 5% | |||||
| 17 | VeeT | Transmitter ground | 1 | 5) | |||||
| 18 | TD+ | Transmit data In | 3 | 8) | |||||
| 19 | TD- | Inv. transmit data In | 3 | 8) | |||||
| 20 | VeeT | Transmitter ground | 1 | 5) | |||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kinds. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Modulation Absent, connected to VEET or VEER in the module.
4) LOS is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use).Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) VeeR and VeeT may be internally connected within the SFP module.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 400 and 2000 mV differential (200 –1000 mV single ended) when properly terminated.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP connector pin. Maximum supply current is 300Ma. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1ohm should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value.VccR and VccT may be internally connected within the SFP transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 400 – 2000mV (200 – 1000mV single-ended).
